What is ASTM A213 material?

ASTM A213 is a specification for seamless ferritic and austenitic alloy steel tubes used in high-temperature applications like boilers, superheaters, and heat exchangers. It covers grades such as T1, T2, T5, T9, T11, T22, and T91, ensuring thermal stability and mechanical strength.

What size is ASTM A213 tubing?

ASTM A213 tubing is available in outer diameters ranging from 6.35 mm to 101.6 mm, with wall thicknesses typically between 0.8 mm and 12.7 mm. Custom lengths, diameters, and thicknesses can also be provided based on project specifications or industry requirements.

What is SA213 T2 material?

SA213 T2 is the ASME equivalent of ASTM A213 T2, a seamless ferritic alloy steel tube with molybdenum content for improved strength and thermal resistance. It is designed for use in boilers, superheaters, and heat exchangers operating under high-temperature and high-pressure conditions.

What is the difference between ASTM A213 and A269?

ASTM A213 covers seamless alloy and stainless steel tubes for high-temperature services, while ASTM A269 covers welded and seamless stainless steel tubing for general corrosion-resisting and low- or high-temperature service. A213 is used more for boiler and heat exchanger tubing.

What is ASTM A269 tubing?

ASTM A269 tubing refers to seamless or welded austenitic stainless steel tubes designed for general corrosion-resistant applications. Commonly used in instrumentation, chemical, and food processing industries, these tubes offer excellent strength, durability, and corrosion resistance.

ASTM A213 T2 Tubes | SA 213 T2 Seamless Boiler & Heat Exchanger Tube Supplier

Q: What are the mechanical properties of ASTM A213 T2 seamless tubes?

ASTM A213 T2 tubes: min tensile strength 415 MPa (60,000 psi), min yield strength 205 MPa (30,000 psi), min elongation 30% in 50mm, max hardness 85 HRB.

Q: What sizes are available for SA 213 T2 seamless tubes?

SA 213 T2 seamless tubes are available OD 6.35mm to 101.6mm, WT 0.8mm to 12.7mm, in single random, double random, or custom cut lengths.

Q: What certifications are provided with ASTM A213 T2 boiler tubes?

USA Piping Solutions supplies ASTM A213 T2 boiler tubes with EN 10204 Type 3.1 MTC, IBR certification, PED certification, and TPI from Lloyd's Register, DNV, TUV, ABS, and SGS.

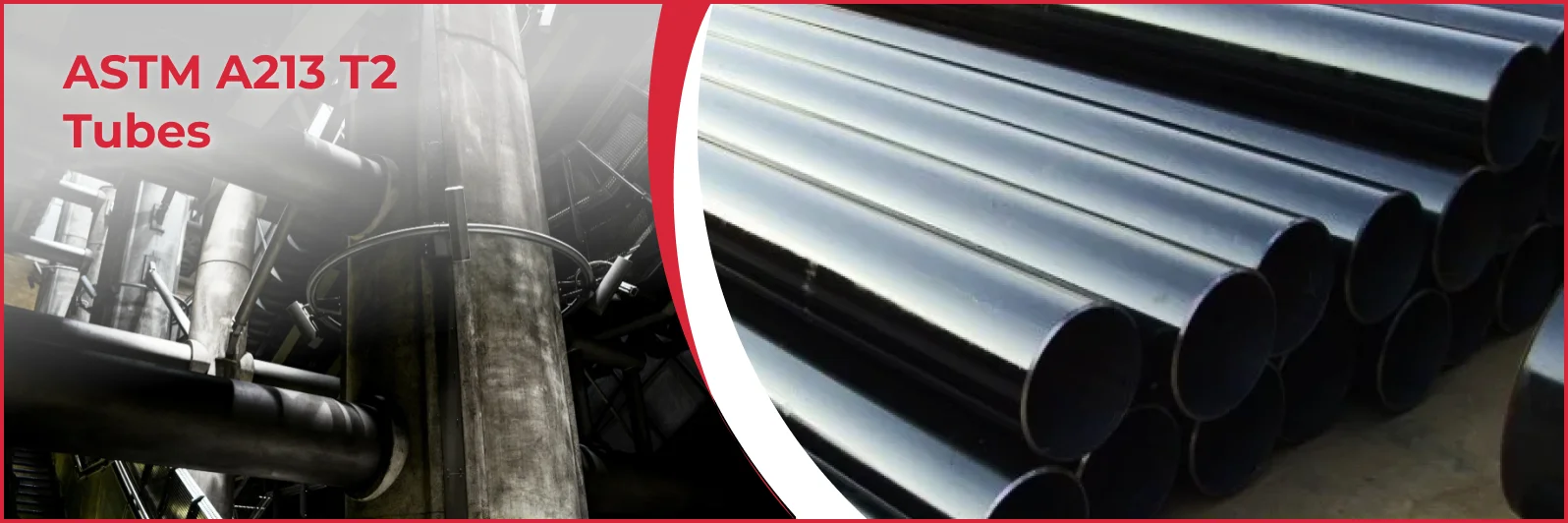

What Are ASTM A213 T2 Tubes? (UNS K11547 Chrome-Moly Alloy Steel)

At USA Piping Solutions, we manufacture and supply ASTM A213 T2 Tubes seamless ferritic alloy steel tubing classified under UNS K11547. The alloy contains 0.5% chromium and 0.5% molybdenum (by weight), and is designed for continuous high-temperature use, making our SA 213 T2 tubes specifically intended for use in power plant boilers, heat exchangers in refineries, and in superheaters that operate outside the thermal limits of carbon steel.

We have both hot-finished and cold-drawn SA213T2 tubing in stock ready for immediate shipping from our US warehouse. It is important to note that every ASTM A213 T2 boiler tube is manufactured to comply with the exact requirements set forth by ASTM/ASME. Each is also tested according to the European norm (EN) 10204:2011 Type 3.1 Mill Test Report requirements, and has been certified by IBR, PED, and Third Party Inspection (TPI). Whether you are looking for regular length straight tubing, precision u-bends or custom-cut pipes, our highly trained team will work with you to meet your exact specifications while providing full traceability and outstanding lead times. We are your first-choice source for EPC contractors, OEMs, and industrial purchasing teams across North America and other global markets.

The pipe-form equivalent of T2 tubing is ASTM A335 P2 Pipes, sharing the same UNS K11547 chemistry and used where larger bore pressure piping is required instead of heat-exchanger tubing

ASTM A213 T2 / ASME SA213 T2 Technical Specifications

Parameter	Specification
Standard	ASTM A213 / ASME SA213
Grade	T2 (UNS K11547)
OD Range	6.35mm to 101.6mm (1/4" to 4")
Wall Thickness	0.8mm to 12.7mm
Length	Single Random (4–7m), Double Random (8–14m), Custom Cut
End Finish	Plain End (PE), Beveled End (BE), Threaded
Form	Seamless (Hot Finished & Cold Drawn)
Surface	Black (as-rolled), Pickled, Bright Annealed
Schedule	SCH 20, 40, 80, 160, XS, XXS, per ASME B36.10
Certifications	EN 10204 3.1 MTC, IBR, PED, NACE, TPI (DNV, TUV, SGS, LR, ABS)

TO GET A QUOTE: Email or call our team with: OD x WT x Length (mm), Quantity (kg or pieces), Grade: T2 (UNS K11547), Standard: ASTM A213 / ASME SA213, Certification required, Delivery location (state/country).

Equivalent Grades & Standards (P2, 12CrMo, EN 10216-2)

Standard	Grade	UNS / Mat. No.	Country	Application
ASTM A213 / ASME SA213	T2	UNS K11547	USA	Tube
ASTM A335 / ASME SA335	P2	UNS K11547	USA	Pipe
EN 10216-2	16Mo3 / 13CrMo4-5	1.5415 / 1.7335	Europe	Tube/Pipe
DIN 17175	12CrMo19-5	—	Germany	Tube
GOST 550	12ChM	—	Russia/CIS	Tube
JIS G3462	STBA 20	—	Japan	Tube

Chemical Composition of SA 213 T2 Material (UNS K11547)

Element	Min (%)	Max (%)
Carbon (C)	0.10	0.20
Manganese (Mn)	0.30	0.61
Silicon (Si)	0.10	0.30
Chromium (Cr)	0.50	0.81
Molybdenum (Mo)	0.44	0.65
Phosphorus (P)	—	0.025
Sulfur (S)	—	0.025

Mechanical Properties of ASTM A213 T2 Seamless Tubes

Property	Value (Metric)	Value (Imperial)
Tensile Strength (min)	415 MPa	60,000 psi
Yield Strength (min)	205 MPa	30,000 psi
Elongation in 50mm (min)	30%	30%
Hardness (max)	85 HRB	163 HB

ASTM A213 T2 Boiler Tube — Types & Forms Available

Hot Finished vs Cold Drawn T2 Tubes

Feature	Hot Finished (HF)	Cold Drawn (CD)
Process	Formed above recrystallization temperature	Drawn at room temperature; annealed after
Surface	Black / mill scale finish	Bright / smoother finish
Tolerance	Wider OD/WT tolerances	Tighter OD/WT tolerances
Typical Use	Power plant boiler tubes, large OD applications	Heat exchanger tubes, precision OD applications
Size Range	Larger OD: 25.4mm to 101.6mm	Smaller OD: 6.35mm to 50.8mm

U-Bend & Custom-Cut T2 Tubes

ASTM A213 T2 Seamless Tubes are available in U-bend form for shell-and-tube heat exchangers, with custom bend radii and leg lengths to match your exchanger bundle design. Custom-cut lengths are available in multiples of standard mill lengths, with plain or beveled ends. Specify your OD, WT, material cert requirement (3.1 or 3.2), and heat/lot traceability level when enquiring.

Applications of ASME SA213 T2 Tubing

A213 T2 Boiler Tubes in Power Plants

ASTM A213 T2 Boiler Tubes are widely specified in coal-fired and combined-cycle power plants for superheater and reheater assemblies operating at metal temperatures up to 510°C (950°F). The 0.5Cr-0.5Mo chemistry delivers superior creep resistance over plain carbon steel at sustained elevated temperatures, making T2 the economic first step in the chrome-moly alloy family. For higher-temperature service beyond T2's limits, see ASTM A213 T11 Tubes (1.25Cr-0.5Mo) and ASTM A213 T22 Tubes (2.25Cr-1Mo).

SA213 T2 Heat Exchanger Tubes in Refineries

ASME SA213 T2 Tubing is used in crude oil pre-heaters, atmospheric distillation overhead condensers, and hydrocracker feed/effluent exchangers in petroleum refineries. T2's moderate corrosion resistance suits naphthenic acid and hydrogen sulfide-containing streams at sub-critical temperatures. For higher-severity refinery service, ASTM A213 T5 Tubes (5Cr-0.5Mo) or T9/T91 grades are recommended. Browse our full range: High-temperature Boiler Tubes & Pipes.

CLIENT USE-CASE: ASTM A213 T2 Tubes supplied to a Gulf Coast refinery heat exchanger retrofit — 4,200 tubes, OD 25.4mm x WT 2.77mm x 6,096mm, EN 10204 3.2 MTC with TUV witnessed inspection. Delivered within 12 business days from US stock.

ASTM A213 T2 Size Chart & Weight Calculator

Standard OD and wall thickness combinations available from USA stock:

OD (mm)	OD (inch)	WT (mm)	Wt/m (kg/m) approx.	Schedule (approx.)
15.88	5/8"	1.65 – 2.77	0.59 – 0.93	SCH 20 – 80
19.05	3/4"	1.65 – 2.77	0.71 – 1.14	SCH 20 – 80
25.40	1"	2.11 – 3.40	1.22 – 1.89	SCH 20 – 80
31.75	1-1/4"	2.11 – 3.96	1.55 – 2.78	SCH 20 – 80
38.10	1-1/2"	2.11 – 5.56	1.88 – 4.64	SCH 20 – 160
50.80	2"	2.77 – 7.62	3.27 – 8.63	SCH 20 – 160
63.50	2-1/2"	3.05 – 8.89	4.53 – 12.30	SCH 20 – 160
76.20	3"	3.05 – 10.16	5.48 – 16.96	SCH 20 – 160
101.60	4"	3.05 – 12.70	7.38 – 28.64	SCH 20 – 160
Custom OD	—	Custom WT	On request	Any schedule

WEIGHT CALCULATOR NOTE: Use the formula: Weight (kg/m) = 0.02466 × WT × (OD − WT) where OD and WT are in mm. For exact calculations, contact our technical team.

Certifications — EN 10204 3.1, IBR, PED, NACE, TPI

EN 10204 Type 3.1 MTC: Mill Test Certificate from manufacturer's authorised inspector
EN 10204 Type 3.2 MTC: Third-party witnessed inspection at mill
IBR (Indian Boiler Reg.): Required for boiler components in India.
PED (European): Pressure Equipment Directive — for European pressure vessel applications
NACE MR0175: Sour service compliance (H2S environments)
TPI — DNV / TUV / SGS / LR / ABS: Third-party inspection — independent witness to manufacturing and testing

For boiler applications requiring Indian regulatory approval, visit: IBR Pipes & Tubes — India Boiler Reg.

Frequently Asked Questions — SA 213 T2 Tube

Q1. What is ASTM A213 T2 Tube?

ASTM A213 T2 Tube is a seamless ferritic alloy steel tube (UNS K11547) with 0.5% Chromium and 0.5% Molybdenum, manufactured per ASTM A213 / ASME SA213 standards for use in boilers, superheaters, and heat exchangers at elevated temperatures and pressures.

Q2. What is the UNS number for SA 213 T2 material?

The UNS number for SA 213 T2 / ASTM A213 T2 material is UNS K11547. It is also equivalent to ASTM A335 Grade P2 for pipe applications and is known internationally as 12CrMo or 12ChM.

Q3. What is the chemical composition of ASTM A213 T2 tubes?

ASTM A213 T2 tubes contain: Carbon 0.10–0.20%, Manganese 0.30–0.61%, Silicon 0.10–0.30%, Chromium 0.50–0.81%, Molybdenum 0.44–0.65%, Phosphorus max 0.025%, Sulfur max 0.025%.

Q4. What is the difference between ASTM A213 T2 and ASME SA213 T2?

ASTM A213 T2 and ASME SA213 T2 are technically identical in chemical and mechanical requirements. ASTM A213 is the standard specification, while ASME SA213 is the ASME Boiler and Pressure Vessel Code adoption used in pressure equipment design and certification.

Q5. What are the mechanical properties of ASTM A213 T2 seamless tubes?

ASTM A213 T2 Seamless Tubes have a minimum tensile strength of 415 MPa (60,000 psi), minimum yield strength of 205 MPa (30,000 psi), minimum elongation of 30% in 50mm, and maximum hardness of 85 HRB.

Q6. What sizes are available for SA 213 T2 seamless tubes?

SA 213 T2 Seamless Tubes are available in OD 6.35mm to 101.6mm, wall thickness 0.8mm to 12.7mm, in single random, double random, or custom cut lengths. Custom ODs and schedules can be manufactured on request.

Q7. What certifications are provided with ASTM A213 T2 boiler tubes?

USA Piping Solutions supplies ASTM A213 T2 Boiler Tubes with EN 10204 Type 3.1 Mill Test Certificates (MTC), IBR certification for Indian boiler compliance, PED certification for European pressure equipment, and TPI from Lloyd's Register, DNV, TUV, ABS, and SGS.
