ASTM A335 P9 Chrome Moly Pipes Manufacturer and Supplier in USA
USA Piping Solution is a trusted manufacturer and global supplier of ASTM A335 P9 Seamless Ferritic Alloy Steel Pipe. This specification governs ASTM A335 P9 Chrome Moly Pipe for strictly high-temperature service environments. The material is widely known in the industry as boiler steel pipe. It meets the requirements for both nominal and minimum wall thickness pipes and is fully suited for fabrication processes including bending, flanging, forming operations, and fusion welding.
What are ASTM A335 P9 Pipes?
ASTM A335 P9 Pipes are a chrome-moly alloy containing 8.00% to 10.00% Chromium (Cr) and 0.90% to 1.10% Molybdenum (Mo). The high Chromium content delivers high-temperature strength, enhances tensile and yield strength, and increases both oxidation and corrosion resistance. Molybdenum plays a key role in increasing overall strength, elasticity, and hardenability. It is the primary element responsible for high-temperature resistance up to 540 degrees C to 750 degrees C while resisting softening and embrittlement. This ASME SA335 Grade P9 Pipe (UNS K90941) offers robust mechanical strength, meeting a minimum tensile strength of 415 MPa and a minimum yield strength of 205 MPa.
ASTM A335 P9 Alloy Steel Seamless Pipe is essential for high-temperature, high-pressure, and corrosion-resistant environments in the petroleum, chemical, electric power, and boiler industries. This makes it a critical material for P9 high pressure steel pipe applications. USA Piping Solution maintains extensive inventories of the ASTM A335 P9 Seamless Pipe across a wide range of sizes from 1/2 inch NPS through 30 inch NPS and wall thicknesses from STD through XXH, with a strong focus on the Heater Tube market. We adhere to strict quality controls, including limiting Vanadium content to a maximum of 0.03% for refinery applications to minimize the risk of creep cracking.
Table of Contents
- ASTM A335 P9 Seamless Pipe Specifications
- Chemical Composition of ASTM A335 P9 Chrome Moly Pipe
- Mechanical Properties of ASME SA335 Grade P9 Pipe
- Equivalent Grades for ASTM A335 P9 Pipes
- Heat Treatment for P9 High Pressure Steel Pipe
- Types and Forms of ASTM A335 P9 Seamless Ferritic Alloy Steel Pipe
- Applications of ASTM A335 P9 Alloy Steel Seamless Pipe

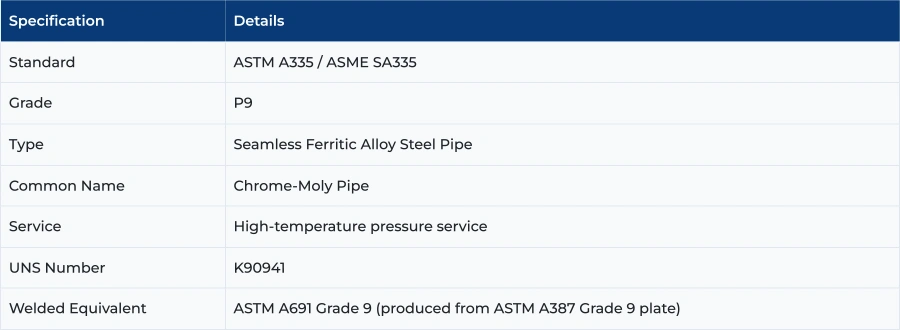

ASTM A335 P9 Seamless Pipe Specifications
The following table outlines the primary regulatory and manufacturing standards for the high-temperature ASTM A335 P9 grade pipe.
|
Specification |
Details |
|---|---|
|
Standard |
ASTM A335 / ASME SA335 |
|
Grade |
P9 |
|
Type |
Seamless Ferritic Alloy Steel Pipe |
|
Common Name |
Chrome-Moly Pipe / 9Cr-1Mo Pipe |
|
Service |
High-temperature pressure service |
|
UNS Number |
K90941 |
|
Size Range |
1/2 inch NPS to 30 inch NPS |
|
Wall Thickness |
STD through XXH |
|
End Finish |
Plain End (PE), Beveled End (BE), Threaded |
|
Welded Equivalent |
ASTM A691 Grade 9 (from ASTM A387 Grade 9 plate) |

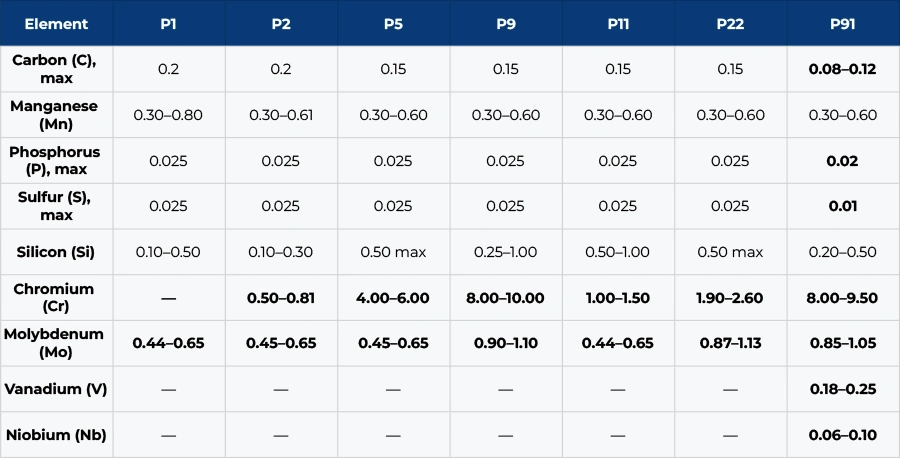

Chemical Composition of ASTM A335 P9 Chrome Moly Pipe
P9's superior high-temperature strength and corrosion resistance stem from its high Chromium and Molybdenum content, as shown in the comparison table below for all ASTM A335 grades.
| Element | P9 |
|---|---|
| Carbon (C) max | 0.15 |
| Manganese (Mn) | 0.30 to 0.60 |
| Phosphorus (P) max | 0.025 |
| Sulfur (S) max | 0.025 |
| Silicon (Si) | 0.25 to 1.00 |
| Chromium (Cr) | 8.00 to 10.00 |
| Molybdenum (Mo) | 0.90 to 1.10 |
| Vanadium (V) | Nil |
| Niobium (Nb) | Nil |

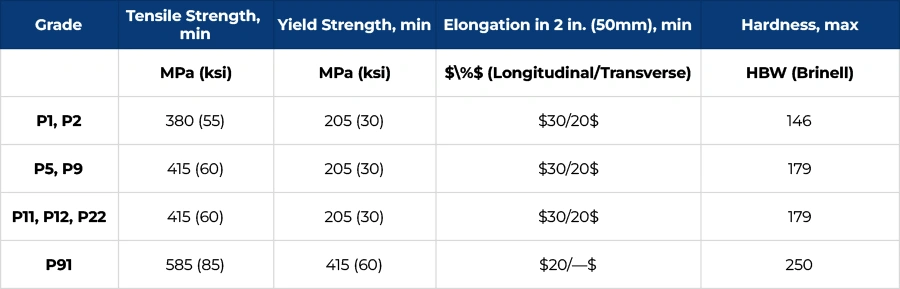

Mechanical Properties of ASME SA335 Grade P9 Pipe
The table below lists the minimum required strength values for the P9 alloy, ensuring its structural integrity in demanding high-temperature applications.
| Grade | Tensile Strength min | Yield Strength min | Elongation min (Long/Trans) | Hardness max (HBW) |
|---|---|---|---|---|
| P9 | 415 MPa (60 ksi) | 205 MPa (30 ksi) | 30% / 20% | 179 |
Equivalent Grades for ASTM A335 P9 Pipes
This table lists common equivalent specifications across tubes, fittings, and flanges to ensure consistency in system fabrication.
| ASTM A335 Grade | UNS No. | European Standard EN 10216-2 | Japanese Standard JIS G3458/G3462 |
|---|---|---|---|
| P9 | S50400 | X11CrMo9-1 (1.7386) | STPA26 / STBA26 |
Heat Treatment for P9 High Pressure Steel Pipe
The pipe is subjected to heat treatment to achieve the specified mechanical properties and microstructure.
| Heat Treatment Method | Normalizing Temp | Tempering Temp | Minimum Hold Time |
|---|---|---|---|
| Annealed, Normalized and Tempered, or Isothermally Annealed | 900 to 980 °C (1650 to 1795 °F) | 730 to 780 °C (1350 to 1430 °F) | 1 hour minimum |
Types and Forms of ASTM A335 P9 Seamless Ferritic Alloy Steel Pipe
- Manufacturing Types: Primarily supplied as Seamless pipe. The chemical equivalent is also available as Electric-Fusion-Welded (EFW) pipe under ASTM A691 Grade 9 when fabricated from plate.
- Dimensional Requirement: Suitable for both Nominal and Minimum wall thickness requirements.
- Fabrication Suitability: The alloy is ideal for secondary forming operations such as bending, flanging, and fusion welding.
Applications of ASTM A335 P9 Alloy Steel Seamless Pipe
The balance of strength and corrosion resistance makes the ASTM A335 P9 Seamless Pipe highly valuable across a range of high-temperature and high-pressure industrial environments.
- High-temperature furnace systems: Used in cracking coils, radiant tubes, and reformer outlet headers.
- Refinery heater tubes: Where thermal cycling and high internal pressure are routine operating conditions.
- Boilers and superheaters: Operating in environments up to 750 degrees C with stringent mechanical demands.
- Petrochemical and synthetic gas units: For transporting corrosive and hot process fluids.
- Power industry steam piping: In systems that require long-term dimensional stability under continuous load.
