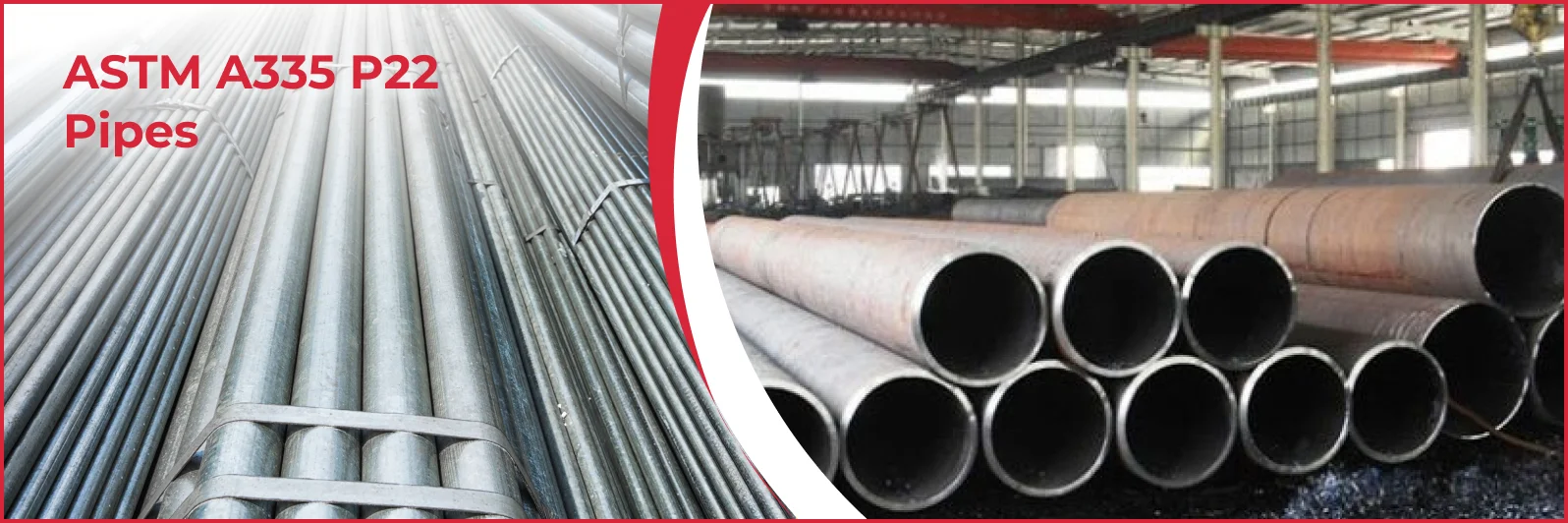

ASTM A335 Grade P22 Alloy Steel Seamless Pipes Supplier

Q: What is ASTM A335 P22 material?

ASTM A335 P22 is a seamless carbon steel alloy pipe that is enhanced with the addition of elements like chromium and molybdenum. Chromium is particularly important because it significantly improves the pipe's resistance to oxidation and boosts its strength, yield, and hardness at elevated temperatures, making it ideal for high-pressure service.

Q: What is the equivalent of ASTM A335 GR P22?

The ASTM A335 P22 grade has several recognized equivalent material specifications across different standards. These equivalents include the ASME designation SA335 P22, the corresponding tube grade T22, and international standards such as 10CrMo910, 10CrMo9-10, 1.7380, and 1.7383.

Q: What is the hardness of A335 P22 pipe?

While specific hardness values can vary, these pipes are required to meet certain mechanical standards. For instance, a similar high-alloy grade, P91, must not exceed a hardness of 250 Brinell (HB). Additionally, depending on size and wall thickness, the pipe may be subjected to a bend test instead of a flattening test to confirm its material integrity.

Q: What is the temperature limit for ASTM A335 P22?

ASTM A335 P22 Pipes are specifically engineered for continuous high-temperature service. They are generally considered suitable for continuous operation at pipe wall temperatures up to approximately 590°C to 600°C (1094°F to 1112°F). Proper heat treatments, such as normalizing and tempering, are essential to ensure the pipe maintains its strength and resistance within this demanding temperature range.

ASME SA335 P22 Alloy Steel Seamless Pipe Manufacturer and Supplier in USA

ASTM A335 P22 Alloy Steel Seamless Pipe or ASME SA335 P22 Pipe is high-performance alloy steel pipeline manufactured out of chromium-molybdenum (chrome-moly) grade alloy, and therefore has better performance properties when it is exposed to high pressure and high temperatures. It is a ferritic alloy steel pipe that is formed according to the ASTM A335 standards and is high strength, creep resistant and thermal stable therefore it is the most appropriate to be implemented in industries that need high performance in their work.

ASTM A335 P22 Chromium-molybdenum alloy steel pipe

The ASTM A335 Gr P22 pipe is made of a balanced chemical composition of 1.902.60 percent chromium and 0.871.13 percent molybdenum, which gives the pipe excellent resistance to oxidation, corrosion, and thermal fatigue even in the longer term when subjected to extreme environmental conditions. It provides a minimal yield strength of 205 Mpa, tensile strength of 415 Mpa, making it very reliable and long term and at the same time provides good weldability and formability.

The pipes we offer in USA Piping Solution are of high quality in terms of ASTM A335 P22 seamless pipes that follow the international standards in boilers, heat exchangers, superheater tubes, and steam pipelines that operate at temperatures of more than 540 degree celsius. The chrome moly steel pipes are popular in the power generation and oil refining and petrochemical industries where durability and precision engineering is mandatory. All the pipes are inspected, and non-destructive testing is practiced so that every pipe is of consistent quality and performance.

ASTM A335 P22 Seamless Pipe Specifications
Chemical Composition of ASTM A335 P22 Pipes
Mechanical Properties of ASME SA335 P22 Pipe
Equivalent Grades of ASTM A335 P22 Alloy Steel Seamless Pipe
ASTM A335 P22 Pipes Outside Diameter & Tolerance
ASME SA335 P22 Steel Pipes Heat Treatment
Alloy Steel Seamless P22 Pipes Weight Chart
Applications of ASTM A335 P22 Seamless Pipes
Explore our comprehensive catalog for technical details on all Alloy Steel Seamless Pipes & Tubes.

ASTM A335 P22 Seamless Pipe Specifications

Specialized in	Large Diameter Pipes Size
Standard	SA335 P22 / ASTM A335 P22
OD	19.05milimeter – 114.3milimeter
Schedule	Schedule 40, 80, 160, XS, XXS
WT	2.0milimeter – 14 milimeter
Length	maximum 16000 milimmeter
Tolerance	Cold drawn pipes: +/-0.1mm Cold rolled pipe: +/-0.05mm
Form	Round, Square, Rectangular, Hydraulic Etc.
Craft	Cold drawn and Cold rolled
Size	1/2” NB upto 36” NB
Length	Double Random, Single Random, & Cut Length.
Type	Welded / ERW / Seamless / Fabricated
Specialized in	SA335 P22
End	Beveled End, Plain End, Treaded
Additional Testing	NACE TM0177, NACE MR 0175, IBR, NACE TM0284, SSC TEST, HIC TEST, H2 SERVICE, etc.

Chemical Composition of ASTM A335 P22 Pipes

P, %	S, %	Cr, %	C, %	Si, %	Mn, %	Mo, %
0.025 max	0.025 max	1.90-2.60	0.015 max	0.50 max	0.30-0.61	0.87-1.13

Mechanical Properties of ASME SA335 P22 Pipe

Yield Strength, MPa	Tensile Strength, MPa	Elongation, %
205 min	415 min	30 min

Equivalent Grades of ASTM A335 P22 Alloy Steel Seamless Pipe

Equivalent Material	UNS	BS	ISO	ASTM	ASME	JIS G 3458	DIN	NK	ABS	LRS
T22, 10CrMo910, 10CrMo9-10, 1.7380, 11CrMo9-10, 1.7383	K21590	3604 P1 622	2604 II TS34	A335 P22	SA335 P22	STPA 24	17175 10CrMo910	KSTPA 24	ABS 13	Sec 2 2-1/4Cr1Mo410

ASTM A335 P22 Pipes Outside Diameter & Tolerance

Dimensional consistency is vital for proper fit-up and welding. These standards specify the permissible deviation in the ASTM A335 P22 Pipes' outside diameter (OD).

ASTM A450	Hot rolled	Outside Diameter, mm	Tolerance, mm
		OD≤101.6	+0.4/-0.8
		101.6＜OD≤190.5	+0.4/-1.2
		190.5＜OD≤228.6	+0.4/-1.6
	Cold Drawn	Outside Diameter, mm	Tolerance, mm
		OD＜25.4	±0.10
		25.4≤OD≤38.1	±0.15
		38.1＜OD＜50.8	±0.20
		50.8≤OD＜63.5	±0.25
		63.5≤OD＜76.2	±0.30
		76.2≤OD≤101.6	±0.38
		101.6＜OD≤190.5	+0.38/-0.64
		190.5＜OD≤228.6	+0.38/-1.14
ASTM A530 & ASTM A335	NPS	Outside Diameter, inch	Tolerance, mm
		1/8≤OD≤1-1/2	±0.40
		1-1/2＜OD≤4	±0.79
		4＜OD≤8	+1.59/-0.79
		8＜OD≤12	+2.38/-0.79
		OD>12	±1%

ASME SA335 P22 Steel Pipes Heat Treatment

Grade	Heat Treatment Type	Normalizing Temperature Range F [C]	Subcritical Annealing or Tempering Temperature Range F [C]
P5, P9, P11, and P22	Full or Isothermal Anneal
P5, P9, P11, and P22	Normalize and Temper	*****	1250 [675]

Alloy Steel Seamless P22 Pipes Weight Chart

Size NPS	Pipe O.D.	Wall Thickness	Pipe I.D.	Weight per Foot	Standard to XXHY	Schedule Pipe #	Section Modulus	Gallon Capacity Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.219	0.612	1.95		160	.1006	.0153
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811
		0.600	2.300	18.6	XXHY		3.4243	.2158
3 1/2	4.0	0.120	3.760	4.98		10	1.3776	.5768
		0.226	3.548	9.12	STD.	140	2.3939	.5136
		0.250	3.500	10.02			2.6001	.4998
		0.281	3.438	11.17			2.8562	.4821
		0.318	3.364	12.52	XHY	80	3.1400	.4617
		0.636	2..728	22.87	XXHY		4.8795	.3085
4	4.5	0.120	4.260	5.62		10	1.7612	.7404
		0.156	4.188	7.24			2.2354	.7156
		0.188	4.124	8.67			2.6296	.6942
		0.203	4.094	9.32			2.8173	.6838
		0.219	4.062	10.02			3.0184	.6725
		0.237	4.026	10.80	STD.	40	3.2145	.6613
		0.250	4.000	11.36			3.3611	.6528
		0.281	3.938	12.67		60	3.7021	.6326
		0.312	3.876	13.97			4.0273	.6126
		0.337	3.826	15.00	XHY	80	4.2713	.5972
		0.438	3.624	19.02		120	5.1790	.5361
		0.531	3.438	22.53		160	5.8997	.4822
		0.674	3.152	27.57	XXHY		6.7927	.4054
5	5.563	0.188	5.187	10.80			4.1161	1.0979
		0.219	5.125	12.51			4.7279	1.0716
		0.258	5.047	14.63	STD.	40	5.4500	1.0391
		0.281	5.001	15.87			5.8644	1.0204
		0.312	4.939	17.51			6.4074	.99647
		0.344	4.875	19.19			6.9358	.9696
		0.375	4.813	20.80	XHY	80	7.4300	.9449
		0.500	4.563	27.06		120	9.2534	.8495
		0.625	4.313	32.99		160	10.7976	.7590
		0.750	4.063	38.59	XXHY		12.0954	.6734
6	6.625	0.109	6.407	7.59		5	3.5769	1.6748
		0.134	6.357	9.30		10	4.3475	1.6488
		0.156	6.313	10.79			5.0107	1.6260
		0.188	6.249	12.94			5.9351	1.5937
		0.203	6.219	13.94			6.3804	1.5780
		0.219	6.187	15.00			6.8261	1.5620
		0.250	6.125	17.04			7.6905	1.5306
		0.280	6.065	18.99	STD.	40	8.4958	1.5008
		0.312	6.001	21.06			9.3416	1.4688
		0.344	5.937	23.10			10.111	1.4391
		0.375	5.875	25.05			10.893	1.4082
		0.432	5.761	28.60	XHY	80	12.224	1.3541
		0.500	5.625	32.74			13.711	1.2909
		0.562	5.501	36.43		120	14.9806	1.2346
		0.625	5.375	40.09			16.1821	1.1787
		0.719	5.187	45.39		160	17.8243	1.0977
		0.864	4.897	53.21	XXHY		20.025	.9784
		1.000	4.625	60.13			21.7719	.8727
		1.125	4.375	66.14			23.1237	.7809

Applications of ASTM A335 P22 Seamless Pipes

Steam Pipelines: Used for main steam lines that transport high-pressure, superheated steam from the boiler to the turbine.
Superheater and Reheater Tubes: Critical components inside the boiler that increase the steam's temperature to maximize efficiency.
Boiler Tubing: Used in sections of the boiler where resistance to heat and pressure is necessary.
Heater and Furnace Tubing: Used in process heaters and cracking furnaces where hydrocarbons are subjected to extremely high temperatures.
High-Pressure Piping: Employed in piping systems for high-temperature service where resistance to hydrogen attack and sulfidic corrosion is required.
Heat Exchangers: Used in heat transfer equipment for preheating reactants or cooling products under high thermal stress.
Process Piping: General piping in chemical plants and synthetic fuel operations that require superior creep rupture properties and stability at elevated temperatures (typically above 540 °C or 1000 °F).

Explore our comprehensive catalog for technical details on all Alloy Steel Seamless Pipes & Tubes.

ASTM A335 P1 Pipes

ASTM A335 P2 Pipes

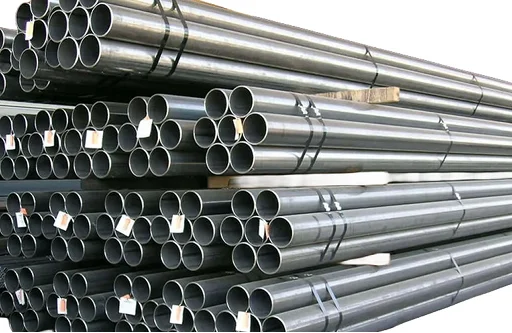

ASTM A335 P5 Pipes

ASTM A335 P11 Pipes

ASTM A335 P9 Pipes

ASTM A335 P91 Pipes

ASTM A213 T22 Tubes

Frequently Asked Questions About ASTM A335 P22 Seamless Pipes

What is ASTM A335 P22 material?

ASTM A335 P22 refers to a smooth pipe made of carbon steel alloy material that is uninterrupted with the incorporation of other elements such as chromium and molybdenum. Chromium is quite significant in the sense that it greatly enhances the resistance of the pipe to oxidation and increases its strength, yield and hardness at high temperatures which make it suitable in high pressure service.

What is the equivalent of ASTM A335 GR P22?

There are multiple material specifications of ASTM A335 P22 grade that have been used under other standards. These equivalents are ASME designation SA335 P22, the equivalent tube grade T22 and international standards 10CrMo910 and 10CrMo9-10 and 1.7380 and 1.7383.

What is the hardness of A335 P22 pipe?

Although the values of specific hardness may fluctuate, these pipes must comply with some mechanical standards. An example of a similar high-alloy grade, P91, should not be allowed to exceed a hardness level of 250 Brinell (HB). Moreover, the pipe can be tested on a bend test rather than flatten test, depending on its size and the thickness of its walls, to ensure integrity of the material used.

What is the temperature limit for ASTM A335 P22?

ASTM A335 P22 Pipes are designed to be used continuously at a high temperature. They tend to be thought to be capable of steadfast functioning at wall temperatures of the pipe up to about 590 o C to 600 o C (1094 o F to 1112 o F). Normalizing and tempering are the right course of action to make the pipe strong and resistant enough to remain in this challenging temperature range.
