SAE J524 Seamless Hydraulic Tubing Manufacturer & Supplier – USA Piping Solution

USA Piping Solution provides manufacturers and maintenance operations nationwide with SAE J524 Seamless Hydraulic Tubing. This specific type of tubing meets the exacting requirements set forth by SAE J524 for low-carbon steel pressure lines used in demanding hydraulic circuits. Its seamless construction and specialized processing ensure suitability for critical flaring and bending. We maintain considerable inventory across the country, enabling prompt response to your needs for certified SAE J524 Seamless Hydraulic Tubing. Rely on us for quality materials and knowledgeable support.

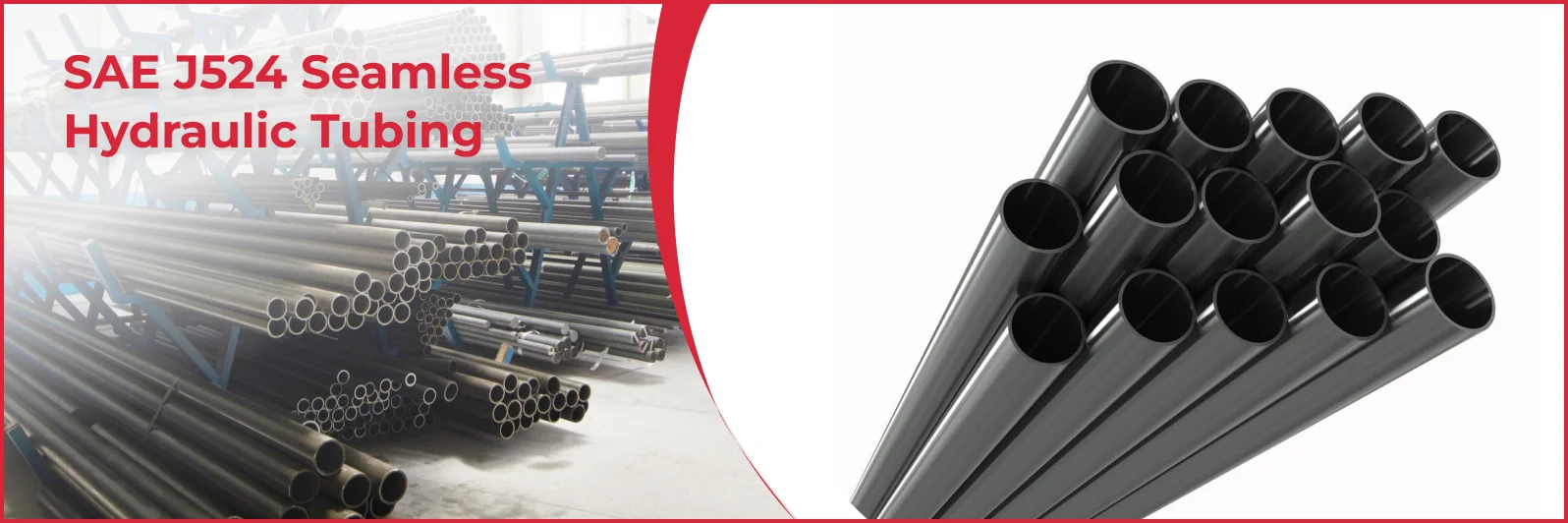

What is SAE J524 Seamless Hydraulic Tubing?

When discussing SAE J524 Seamless Hydraulic Tubing, we're referring to a premium grade of low-carbon steel tubing, distinguished by its seamless manufacturing process and its specific suitability for hydraulic systems. The Society of Automotive Engineers standard J524 details the requirements for this cold-drawn and annealed tubing, emphasizing quality appropriate for reliable flaring and bending operations – crucial steps in assembling leak-free fluid power lines.

Its journey from raw material to finished tube sets it apart:

• Seamless Origin: Unlike welded tubes, J524 starts as a solid piece of steel that is pierced and drawn. This eliminates a weld seam entirely, offering maximum material uniformity and structural integrity, a distinct advantage under high pressure or vibration.
• Cold Drawing Refinement: The tubing undergoes cold drawing processes after initial forming. This step enhances dimensional precision, creating tubing with tightly controlled outside and inside diameters, as well as wall thickness. It also improves the surface finish.
• Annealed for Formability: A vital final step involves annealing. This heat treatment counteracts the hardening effect of cold drawing, restoring the steel's ductility. The result is tubing that is exceptionally easy to bend into complex shapes and flare for fittings without cracking.
• Focus on Cleanliness: The standard recognizes the importance of internal cleanliness in hydraulic systems and requires tubing free from contaminants.

Engineers choose Seamless Hydraulic Tubing specified to SAE J524 when the demands of the application warrant the highest level of integrity, particularly for high-pressure circuits, systems requiring intricate tube routing, or where the consequences of a leak are significant. It represents a superior choice among Seamless Carbon Steel Tubing options designed for fluid power applications.

SAE J524 Tubing Specifications

To ensure safety and proper function within hydraulic systems, tubing must precisely meet the technical criteria of SAE J524. USA Piping Solution supplies seamless hydraulic tubing manufactured to fully comply with this demanding standard.

Technical Details and Requirements

Specification	Details
Governing Standard	SAE J524 (Seamless Low Carbon Steel Pressure Tubing), AMS 5050 may also apply
Material Grade	Low Carbon Steel (typically 1006 to 1010) for high ductility when annealed
Production Method	Seamless tubing with cold drawing and final annealing heat treatment
Common Size Range (OD)	Approx. 0.125" to 1.500" (may be available beyond this range)
Wall Thickness Availability	Standard options include .028", .035", .049", .065"
Form	Round tubing only
End Preparation	Plain Ends (PE), cut square and deburred
Stock Lengths	Standard 20-foot nominal lengths; custom cut-to-length available
OD Tolerances	±0.003" to ±0.010", depending on size
Wall Thickness Tolerances	Typically ±10% (±15% for tubing with <1/2" ID)
Straightness	Meets standard commercial straightness requirements
Surface Condition	Bright, clean surfaces; light protective internal oil coating

Chemical Composition and Mechanical Properties

The reliable performance of SAE J524 Seamless Hydraulic Tubing, especially its excellent formability, arises from its simple low-carbon chemistry and the specific mechanical properties resulting from the cold-draw and anneal process.

Chemical Requirements (% by Weight)

The steel's composition is deliberately kept straightforward to maximize ductility.

Element	Limit (%)	Purpose
Carbon (C)	0.18 max	Keeping carbon low ensures the softness needed for easy flaring/bending.
Manganese (Mn)	0.30 – 0.60	Provides necessary baseline strength.
Phosphorus (P)	0.040 max	Impurity restricted to maintain material toughness.
Sulfur (S)	0.050 max	Impurity limited for better formability and joining quality.

This specific chemical balance is key to the tubing's intended performance.

Mechanical Property Expectations

The final annealed state prioritizes ease of fabrication (ductility, softness) while ensuring sufficient strength for hydraulic pressures.

Property	Typical Value Range (SAE J524)	Importance in Hydraulic Use
Tensile Strength	45,000 psi (310 MPa) min	Indicates the tube's ultimate pressure containment capacity.
Yield Strength	25,000 psi (172 MPa) min (Representative)*	Point where permanent deformation starts; lower value aids easy bending.
Elongation	35% min (in 2")**	Vital: High elongation confirms it can stretch significantly during flaring without failure.
Hardness (Rockwell B)	65 HRB max	Vital: Confirms the tubing is soft enough to form flares and bends reliably.

 SAE J524 focuses more heavily on ensuring high ductility (elongation) and controlled low hardness for formability than on maximizing yield strength.
* Very small or thin tubes might have a slightly adjusted minimum requirement (30%).

Mandatory Performance Tests (per SAE J524):
The standard requires tests that directly prove the tube's suitability for hydraulic assembly:

• Flattening Test: Crushing a sample flat verifies material soundness and absence of defects.
• Expansion (Flare) Test: Expanding the tube end by 30% over a cone without splitting is a direct confirmation of its flarability.
• Hydrostatic Test: Pressure testing each length confirms its ability to hold pressure without leaks, essential for hydraulic integrity. NDE alternatives may be used.

Successfully passing these tests validates the tubing's readiness for demanding Seamless Hydraulic Tubing roles.

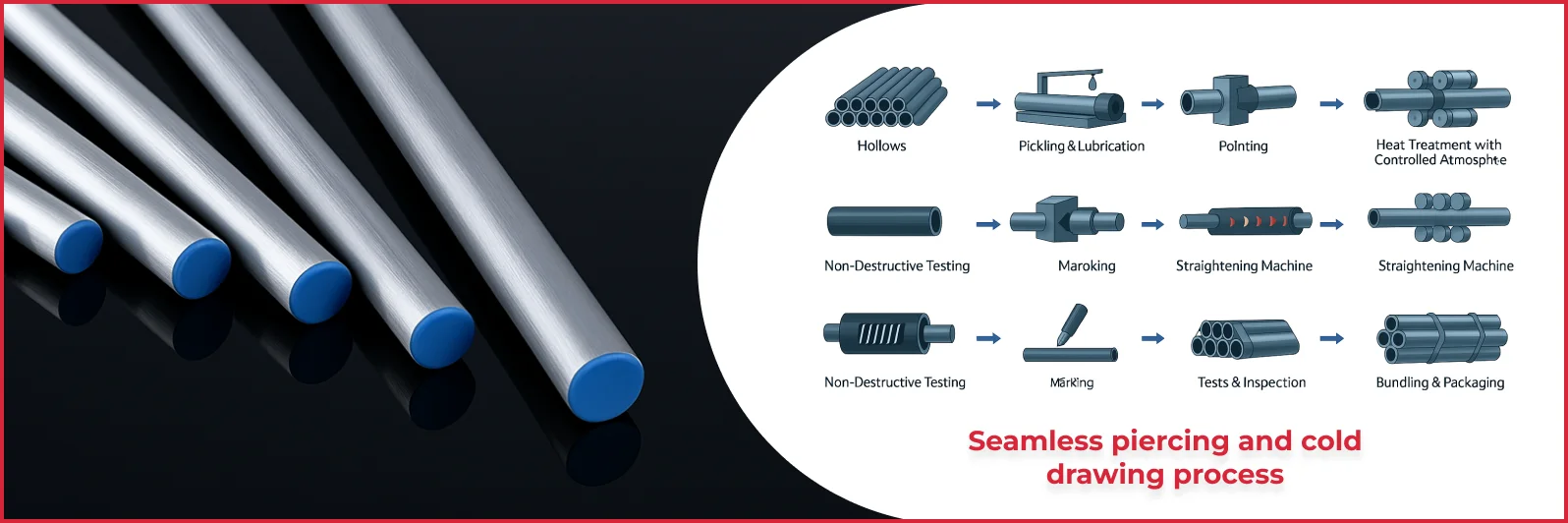

Manufacturing SAE J524 Seamless Tubing: The Process

Producing SAE J524 Seamless Hydraulic Tubing involves several carefully controlled steps to achieve its unique properties without any welds:

1. Billet Heating: Solid round billets of selected low-carbon steel are heated in a furnace until they reach a temperature suitable for piercing.
2. Piercing: Using significant force and specialized tooling (like a rotary piercer), a hole is created through the center of the hot billet, forming a rough seamless tube or hollow.
3. Hot Rolling (Optional): This initial hollow might undergo some hot rolling to begin reducing the wall and increasing length.
4. Cold Drawing: This is a key phase where the seamless tube is pulled through precision dies, often multiple times. An internal mandrel may be used to control the inside diameter. Cold drawing achieves:
• Accurate final dimensions (OD, ID, Wall).
• A smooth surface finish.
• Increased strength and hardness (work hardening). Intermediate anneals might be needed between heavy drawing passes.
5. Final Annealing: After cold drawing to size, the tubing is fully annealed. This heat treatment, performed in a controlled atmosphere, softens the steel, maximizes ductility, and removes stresses from the cold work. This step is critical for achieving the bendability and flexibility required by J524.
6. Finishing: Post-annealing steps include straightening, cutting to length, thorough cleaning, and applying internal corrosion protection.
7. Testing: Final verification includes dimensional checks, visual inspection, and the mandatory J524 performance tests (flattening, expansion/flare, pressure/NDE).

This comprehensive process ensures the resulting tubing has the integrity, precision, cleanliness, and exceptional formability needed for high-quality hydraulic systems.

Why Choose J524 Tubing? Key Advantages

Specifying SAE J524 Seamless Hydraulic Tubing offers significant benefits derived from its unique manufacturing process and properties:

Core Strengths:

• Outstanding Formability: The fully annealed, low-carbon steel construction allows for exceptional ductility. This means tight bends can be made reliably, and flares form cleanly without cracking, simplifying installation and ensuring leak-tight joints.
• Highest Integrity (Seamless): The lack of a weld seam provides complete structural uniformity. This eliminates any potential concerns associated with weld quality or integrity, offering maximum reliability, especially under high pressure, fatigue, or vibration.
• Superior Surface Quality: Cold drawing produces smooth, clean internal and external surfaces. This is beneficial for fluid flow and critical for reducing potential contamination in sensitive hydraulic systems.
• Precise Dimensions: The cold drawing process enables tight control over OD, ID, and wall thickness, ensuring consistent fit with standard hydraulic fittings and predictable performance.
• Enhanced Cleanliness: Emphasis on cleanliness throughout production helps ensure the tubing meets the stringent requirements of modern hydraulic systems.
• Proven Pressure Capability: Designed and tested for hydraulic pressures, the seamless construction provides robust pressure containment suitable for demanding fluid power applications.

J524 vs. J525 (Welded):

• While J525 offers good performance and economy, J524 is generally selected when the absolute highest integrity is required, pressures are very high, bending requirements are severe, or project specifications mandate seamless construction.

SAE J524 tubing is the benchmark for high-quality seamless hydraulic lines where performance cannot be compromised.

Common Industries and Applications

The specific capabilities of SAE J524 Seamless Hydraulic Tubing make it the preferred choice in applications where reliability and complex fabrication are common:

• Heavy Equipment Hydraulics: Used extensively in demanding hydraulic circuits on construction machinery (excavators, cranes), agricultural vehicles (tractors, combines), and forestry equipment where high pressures and complex tube routing are standard.
• Automotive & Trucking: Forms critical high-pressure lines in braking systems (subject to regulations), power steering units, fuel injection systems (check compatibility), and hydraulic clutch mechanisms requiring top-tier reliability.
• Industrial Machinery & Automation: Essential for hydraulic control systems in precision machine tools, industrial presses, robotic systems, and other factory equipment where leak-free operation and intricate plumbing are required.
• Material Handling Systems: Utilized in the hydraulic circuits of forklifts, aerial lifts, and other lifting devices where operational safety relies heavily on hydraulic system integrity.
• Aerospace & Defense: Employed in specific ground support hydraulic systems and test equipment demanding high quality standards and proven material performance.
• High-Pressure Fluid Systems: Suitable for various industrial applications transporting hydraulic fluids or other liquids under significant pressure where seamless construction offers advantages.

Engineers opt for J524 when the consequences of failure are high, when complex bends must be made without kinking or splitting, and when achieving consistently reliable flared connections is crucial.

SAE J524 Tubing Size Chart and Weight Chart

This chart provides nominal dimensions and approximate weights for typical SAE J524 Seamless Hydraulic Tubing sizes. Please use these weights for estimation; actual values can vary slightly.

OD (in)	Wall (in)	ID (in)	Wt (lbs/ft)	Wt ( kg/m )
0.188	0.035	0.118	0.057	0.085
0.250	0.028	0.194	0.066	0.098
0.250	0.035	0.180	0.080	0.119
0.250	0.049	0.152	0.105	0.156
0.313	0.035	0.243	0.104	0.155
0.375	0.035	0.305	0.127	0.189
0.375	0.049	0.277	0.171	0.254
0.375	0.065	0.245	0.215	0.320
0.500	0.035	0.430	0.174	0.259
0.500	0.049	0.402	0.236	0.351
0.500	0.065	0.370	0.302	0.449
0.625	0.049	0.527	0.301	0.448
0.625	0.065	0.495	0.389	0.579
0.750	0.049	0.652	0.367	0.546
0.750	0.065	0.620	0.476	0.708
0.875	0.065	0.745	0.562	0.836
1.000	0.065	0.870	0.649	0.966
1.000	0.083	0.834	0.813	1.210
1.250	0.083	1.084	1.034	1.539
1.250	0.095	1.060	1.172	1.744
1.500	0.095	1.310	1.426	2.122
1.500	0.120	1.260	1.769	2.633

Note: Weight estimates based on nominal steel density. Actual weights may differ slightly due to dimensional tolerances.

Note: Weights calculated from nominal dimensions. Manufacturing tolerances will affect actual weight.

Quality Assurance: Documentation and Compliance for Hydraulic Tubing

Confirming that tubing meets the stringent requirements of SAE J524 is vital for hydraulic applications. USA Piping Solution provides materials with the necessary quality validation.

• SAE J524 Conformance: We supply tubing certified by the manufacturer to fulfill all requirements of the SAE J524 standard. This encompasses the low-carbon chemistry, the specific seamless, cold-drawn, and annealed production route, dimensional accuracy, crucial mechanical properties like hardness and elongation, and successful completion of required performance tests (flattening, flare, pressure/NDE).
• Traceability: Materials are traceable via heat numbers or equivalent lot identifiers, ensuring a connection back to production records and test results.
• Certification: Certificates of Conformance (CoC) or Mill Test Reports (MTRs) are available upon request. These documents formally confirm compliance with SAE J524 and typically include verification of the mandatory performance tests.
• ISO 9001 Framework: Our quality management practices follow ISO 9001 certified procedures, ensuring consistency in our supply chain management.
• Identification: Bundles or tags are marked with key information, usually including manufacturer, SAE J524 reference, size, and traceability codes, adhering to industry practice.

This commitment to documented quality provides assurance that the tubing is suitable for its intended critical hydraulic functions.

Why Source SAE J525 Tubing from USA Piping Solution?

Choosing the right supplier for specialized hydraulic tubing streamlines procurement and ensures quality. USA Piping Solution offers compelling reasons to be your source for SAE J525 Welded Hydraulic Tubing:

• Specific Product Focus: We understand the critical attributes of J525 tubing – formability, cleanliness, tolerances – required for successful hydraulic system assembly.
• Ready US Inventory: We maintain significant stock levels of common J525 tubing sizes across our distribution centers, enabling faster fulfillment than relying solely on mill lead times.
• Efficient Distribution: Our logistics network is optimized to deliver your tubing orders promptly and reliably anywhere in the United States.
• Quality Material Sourcing: We partner with established mills recognized for producing high-quality J525 hydraulic tubing that meets all standard requirements.
• Value-Added Cutting: We provide precision cut-to-length services, delivering tubing ready for your bending and flaring operations.
• Responsive & Knowledgeable Service: Our team is prepared to offer timely quotes, answer technical questions, and ensure efficient order processing from start to finish.

Why USA Piping Solution for SAE J524 Tubing?

Choosing a supplier familiar with the specifics of hydraulic tubing standards is important. USA Piping Solution offers distinct advantages for your SAE J524 Seamless Hydraulic Tubing needs:

• Focused Expertise: We understand the critical nature of SAE J524 requirements – seamless integrity, precise dimensions, surface quality, and superior formability – essential for reliable hydraulic systems.
• Domestic Inventory: Maintaining significant stock of common J524 seamless sizes in the US allows for faster fulfillment compared to typical mill lead times.
• Efficient Distribution: Our logistics network is set up for dependable and timely delivery across the United States.
• Quality Sourcing: We partner with established mills known for consistently producing high-quality seamless hydraulic tubing compliant with the J524 standard.
• Precision Cutting: We offer cut-to-length services, providing tubing prepared for your specific bending and flaring needs.
• Dedicated Service: Our team is focused on providing prompt responses, accurate information, and efficient processing for all J524 tubing inquiries and orders.

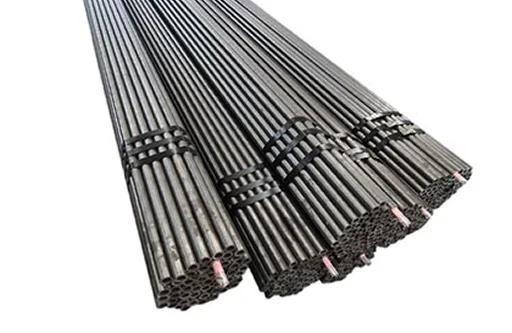

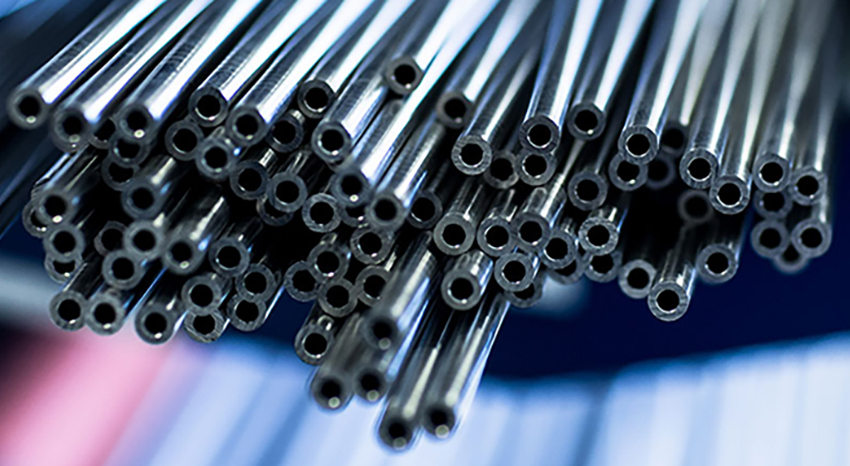

Exploring Related Pipe and Tubing Selections

While J524 serves premium seamless hydraulic needs, USA Piping Solution also offers other related tubulars:

Choosing the right standard depends on pressure, bending severity, and whether seamless construction is a firm requirement. Our team can assist.

Secure Your SAE J524 Seamless Hydraulic Tubing

For hydraulic systems where performance, intricate forming, and the absolute reliability of seamless construction are required, specify SAE J524 Seamless Hydraulic Tubing from USA Piping Solution. We provide certified, high-quality Seamless Hydraulic Tubing from trusted sources, readily available from our US inventory. Ensure the integrity and ease of assembly for your critical fluid power applications.

Contact USA Piping Solution to discuss your SAE J524 Seamless Hydraulic Tubing needs. We are prepared to offer a detailed and competitive quotation for your project.

Request Your SAE J524 Tubing Quote Today!
