When operating conditions involve persistent exposure to saltwater, high pressures, and the constant threat of corrosion and biofouling, standard materials often prove inadequate. This is where Copper Nickel 70/30 Pipes & Tubes - UNS C71500 demonstrate their exceptional value. As a premier manufacturer and trusted global supplier, USA Piping Solution provides these robust cupro-nickel alloy tubulars, engineered for superior performance in demanding environments. Recognized by its designation UNS C71500 or often simply as CuNi 70/30, this alloy is a mainstay in marine engineering, offshore platforms, desalination plants, power generation condensers, and critical heat exchanger applications. USA Piping Solution offers a comprehensive inventory, including seamless and welded forms, alongside customization options and rigorous quality assurance, ensuring you receive dependable materials precisely suited to your project's needs.
What are Copper Nickel 70/30 Pipes & Tubes? Understanding the Alloy
Copper Nickel 70/30, technically known as UNS C71500, represents a specific copper-based alloy where nickel is the principal alloying element, present at approximately 30%. The remaining composition is primarily copper, with controlled, small additions of iron and manganese that are crucial for optimizing its performance characteristics. This alloy belongs to the cupro-nickel (often shortened to CuNi) family, renowned for its outstanding resistance to aqueous corrosion, particularly in saline environments.
What makes CuNi 70/30 Pipes so effective, especially in marine settings? Several key properties contribute:
- Excellent Seawater Corrosion Resistance: This is arguably its most defining feature. CuNi 70/30 exhibits very low general corrosion rates in seawater and brackish water. Crucially, it also offers strong resistance to localized attack mechanisms like pitting and creville corrosion, which can plague lesser alloys in chloride-rich waters.
- Resistance to Biofouling: Copper ions naturally deter the attachment and growth of marine organisms (barnacles, algae, mussels). While not entirely immune, CuNi 70/30 has significantly better inherent anti-fouling properties compared to stainless steels or carbon steels, reducing the need for frequent cleaning in seawater systems.
- Good Strength and Ductility: It provides a good balance of mechanical strength, sufficient for handling typical pressures in piping and heat exchanger systems, combined with excellent ductility, allowing for easy forming, bending, and fabrication.
- Resistance to Erosion Corrosion: In applications involving flowing seawater or slurries, CuNi 70/30 demonstrates good resistance to erosion corrosion caused by turbulence and suspended particles, outperforming many other copper alloys and steels.
- Good Thermal Conductivity: While lower than pure copper, its thermal conductivity is still good, making it effective for heat exchanger applications.
These combined attributes solidify Copper Nickel C71500 Tubes as a premium choice for long-term, reliable service in challenging saltwater environments and related industrial processes.
Specifications of CuNi 70/30 Pipes & Tubes
Ensuring reliable performance demands adherence to established industry specifications. USA Piping Solution supplies Copper Nickel 70/30 Pipes & Tubes manufactured and tested according to recognized international standards.
Technical Standards
| Standard Designation | Description | Product Form Covered |
|---|---|---|
| ASTM B466 / ASME SB466 | Standard Specification for Seamless Copper-Nickel Pipe and Tube | Seamless Pipe & Tube |
| ASTM B467 / ASME SB467 | Standard Specification for Welded Copper-Nickel Pipe | Welded Pipe |
| ASTM B111 / ASME SB111 | Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock | Seamless Tube |
| ASTM B552 / ASME SB552 | Standard Specification for Seamless and Welded Copper-Nickel Tubes for Water Desalting Plants | Seamless & Welded Tube |
| MIL-T-16420K | Military Specification: Tube, Copper-Nickel Alloy, Seamless and Welded (Often specifies Class 200/700) | Seamless & Welded Tube/Pipe |
| EEMUA 144 | Specification for Tubes: Seamless and Welded (Relevant for Offshore) | Seamless & Welded Tube/Pipe |
| DIN 86019 | Pipes of Copper-Nickel Alloys (German Standard) | Seamless & Welded Pipe |
| EN 12449 | Copper and copper alloys - Seamless, round tubes for general purposes (Specifies CW354H) | Seamless Tube |
Other national or specific industry standards may also apply. Always confirm the required specification for your project.
Dimensional Range & Tolerances
| Dimension | Typical Range Covered | Notes |
|---|---|---|
| Pipe Size (NPS) | 1/8" NB through 24" NB commonly available. Larger sizes often fabricated. | Seamless availability typically reduces above 8"-10" NPS. |
| Tube OD | From small instrumentation sizes (~1/4" / 6.35mm) up to several inches (e.g., 8" / 203mm). | Specific ranges depend on seamless vs. welded and the standard. |
| Wall Thickness (WT) | Covers standard pipe schedules (Sch 10 through Sch 160/XXS) and specific tube wall thicknesses (BWG or mm/inches). From approx. 0.5mm up to 50mm possible. | Minimum or average wall thickness must be specified for tubing. |
| Length | Single Random (SRL), Double Random (DRL), or specific cut-to-lengths up to ~12-15 meters typically. | Longer lengths may be possible with certain production methods/sizes. |
| Tolerances | Dimensional tolerances (OD, WT, Length, Straightness) are governed by the specified ASTM/ASME/EN/DIN standard. | Tighter tolerances often achievable with seamless cold-drawn tubes. |
Chemical Composition and Mechanical Properties
The performance signature of CuNi 70/30 stems directly from its elemental makeup and the resulting physical characteristics.
Chemical Composition (Typical - UNS C71500)
The precise balance of elements is crucial for achieving the desired corrosion resistance and mechanical properties:
| Element | Symbol | Nominal Content (% by Weight) | Key Role in Performance |
|---|---|---|---|
| Copper | Cu | Balance (~65% min) | The base metal, providing inherent corrosion resistance and good thermal conductivity. |
| Nickel | Ni | 29.0 – 33.0% | The primary alloying element, significantly enhancing strength and dramatically improving resistance to seawater corrosion, erosion, and general chemical attack compared to pure copper or brasses. |
| Iron | Fe | 0.40 – 1.0% | Small, controlled additions of iron are essential for optimizing resistance to impingement corrosion and erosion in flowing seawater. |
| Manganese | Mn | ≤ 1.0% | Acts as a deoxidizer and desulfurizer during melting, contributes slightly to strength, and improves hot workability. |
| Lead | Pb | ≤ 0.05% | Limited as an impurity. |
| Zinc | Zn | ≤ 1.0% | Generally limited as an impurity, though sometimes present in trace amounts. |
| Other Impurities | - | Very low levels | Elements like P, S are kept to minimal levels. |
Composition ranges based primarily on ASTM B466/B111. Specific standards might have minor variations.
Mechanical Properties (Typical - Annealed Condition)
CuNi 70/30 offers a useful combination of strength and excellent ductility in the commonly supplied annealed state:
| Property | Representative Minimum / Typical Values | Significance for Application |
|---|---|---|
| Tensile Strength (UTS) | ~345 - 380 MPa (~50 - 55 ksi) | Provides adequate strength for most piping and heat exchanger pressure requirements. |
| Yield Strength (0.2% or 0.5% Offset) | ~125 - 140 MPa (~18 - 20 ksi) | Indicates the stress required to cause permanent deformation. Low yield aids formability. |
| Elongation (% in 50mm/2") | ≥ 30 - 40% | High elongation signifies excellent ductility, allowing for easy bending, flaring, and forming without fracture. |
| Hardness (Rockwell B) | Typically HRB 50-70 (Annealed) | Relatively soft condition facilitates fabrication. Hardness increases significantly with cold work. |
| Modulus of Elasticity | ~152 GPa (~22,000 ksi) | Material stiffness. |
Cold working can significantly increase strength and hardness but will reduce ductility.
Seamless vs Welded Copper Nickel Tubes - Understanding the Difference
USA Piping Solution offers both seamless and welded Copper Nickel C71500 Tubes and pipes. Understanding the distinction is key to selecting the right product:
- Seamless CuNi 70/30 Pipes & Tubes:
- Process: Made by extruding or piercing a solid billet, resulting in a tube with no weld seam.
- Advantages: Highest structural integrity, uniform grain structure, generally considered superior for high-pressure applications and critical services where any potential weld defect is unacceptable. Often preferred for heat exchanger tubes (per ASTM B111) and high-pressure piping (per ASTM B466 UNS C71500).
- Considerations: Can sometimes have limitations on achievable OD/WT ratios and might be more expensive than welded alternatives, especially in larger sizes.
- Welded CuNi 70/30 Pipes & Tubes:
- Process: Formed from flat strip or plate, with the longitudinal edges joined by welding (typically TIG or Plasma Arc for CuNi alloys to ensure quality).
- Advantages: More cost-effective, particularly for larger diameters (e.g., >8-10" NPS). Allows for potentially thinner walls relative to diameter compared to some seamless processes. Readily available for pipe standards like ASTM B467.
- Considerations: The weld seam, although manufactured to high standards, represents a potential point of difference in structure and properties compared to the base metal. Rigorous NDT (Non-Destructive Testing) is crucial to ensure weld integrity for demanding service.
The choice hinges on the specific application's pressure requirements, governing codes, criticality, size, and budget constraints.
Applications and Industries Served - Where CuNi 70/30 Excels
The unique properties of Copper Nickel 70/30 Pipes & Tubes make them highly valued in specific, often demanding, industrial environments:
- Marine & Naval Engineering: This is a primary application area. Used extensively for:
- Seawater piping systems (cooling water, fire mains, sanitary systems)
- Condensers and heat exchangers cooled by seawater
- Sheathing for offshore platform legs and boat hulls (resisting marine growth)
- Hydraulic lines in marine environments
- Offshore Oil & Gas Platforms: Critical piping systems handling seawater, firewater systems, and process cooling loops benefit from its durability.
- Power Generation: Condenser tubing, heat exchanger tubing (especially in coastal plants using seawater cooling), and auxiliary piping systems.
- Desalination Plants: A key material for tubing in Multi-Stage Flash (MSF) and Multi-Effect Distillation (MED) plants due to its resistance to hot brine and seawater.
- Chemical Processing: Used for heat exchangers and piping handling specific chemicals where its corrosion resistance profile is advantageous (though less broad than high nickel alloys).
- Shipbuilding & Repair: Essential for various onboard piping systems requiring long-term reliability in a saltwater environment.
- Aquaculture: Utilized for constructing durable, anti-fouling fish cages and pens.
Its reputation as premier Marine Grade Cu-Ni Tubing is well-earned due to its long, proven track record in these challenging applications.
Copper Nickel 70/30 Pipes & Tubes Size Chart
USA Piping Solution provides CuNi 70/30 Pipes and tubes across a wide range of standard dimensions. Below is an illustrative guide to common sizes.
(Insert Size Chart Table - Structure clearly. For Pipes, include NPS from 1/8" to ~12", list OD, and common Schedule walls like 10, 40, 80, mentioning Class 200 where relevant for MIL-spec. For Tubes, list common ODs from 1/4" to ~8" and typical WTs in BWG/inches/mm.)
Example Snippet (Requires significant expansion and clear formatting for pipes vs. tubes):
Typical Pipe Sizes (Ref: ASTM B466 / B467)
| NPS | OD (in) | Common Walls (Sch 10, 40, 80, Class 200) |
|---|---|---|
| 1/2" | 0.840" | Sch 40 (0.109"), Sch 80 (0.147"), Cl 200 (~0.109") |
| 1" | 1.315" | Sch 10 (~0.109"), Sch 40 (0.133"), Sch 80 (0.179"), Cl 200 (~0.133") |
| 2" | 2.375" | Sch 10 (~0.109"), Sch 40 (0.154"), Sch 80 (0.218"), Cl 200 (~0.154") |
| 4" | 4.500" | Sch 10 (~0.120"), Sch 40 (0.237"), Sch 80 (0.337"), Cl 200 (~0.237") |
| 6" | 6.625" | Sch 10 (~0.134"), Sch 40 (0.280"), Sch 80 (0.432"), Cl 200 (~0.280") |
Typical Tube Sizes (Ref: ASTM B111)
| OD (in) | Common Wall Thicknesses (BWG / inches / mm) |
|---|---|
| 3/4" | 18 BWG (0.049"/1.24), 16 BWG (0.065"/1.65) |
| 1" | 18 BWG (0.049"/1.24), 16 BWG (0.065"/1.65), 14 BWG (0.083"/2.11) |
| 1.5" | 16 BWG (0.065"/1.65), 14 BWG (0.083"/2.11), 12 BWG (0.109"/2.77) |
This overview is representative. Our inventory includes a vast range of dimensions. Please contact USA Piping Solution with your specific OD, WT/Schedule, and length needs for accurate stock information.
Certifications and Compliance Assurance
Quality control and adherence to standards are critical for materials used in demanding service. USA Piping Solution guarantees that all Copper Nickel 70/30 Pipes & Tubes meet required certifications:
- ASTM / ASME Standards: Materials are certified to conform fully to the specified ASTM standard (e.g., B466, B467, B111) and its corresponding ASME SB designation where applicable.
- UNS C71500 Compliance: Chemical composition and properties align with the UNS C71500 designation.
- Military Specifications (Optional): Where required, materials can often be sourced or certified to meet relevant MIL-spec requirements like MIL-T-16420K.
- ISO 9001:2015 Certification: Our quality management system ensures consistent processes and reliable product sourcing and supply.
- Mill Test Reports (MTRs): Comprehensive MTCs according to EN 10204 3.1 are provided standard, offering full traceability via heat/lot numbers and documenting verified chemical analysis and mechanical test results.
- Third-Party Inspection (TPI): We readily facilitate inspections by recognized independent agencies (e.g., Lloyds Register, DNV, ABS) upon customer request for enhanced verification.
Why Choose USA Piping Solution for CuNi 70/30?
Choosing USA Piping Solution for your Copper Nickel 70/30 needs offers significant advantages:
- Extensive Inventory: We maintain substantial stocks of common C71500 pipe and tube sizes in both seamless and welded forms, enabling faster project starts and reduced lead times.
- Material Expertise: Our team understands the nuances of cupro-nickel alloys, their applications, and fabrication challenges, providing knowledgeable support beyond simple order taking.
- Seamless and Welded Options: We offer both manufacturing types, allowing us to provide the best technical and economic solution based on your specific application demands.
- Customization Services: Need precise lengths? Require specific end preparations? Our value-added services deliver materials closer to your final installation requirements.
- Global Supply Capability: Our robust logistics network ensures efficient and reliable delivery of materials to your site, anywhere in the world, with complete documentation.
- Quality Assurance: Our commitment to standards, rigorous sourcing practices, and comprehensive MTCs guarantee you receive high-quality, fully traceable materials.
- Responsive Service: We pride ourselves on prompt quotes, clear communication, and dedicated support throughout the order process.
Related Products
Our expertise in copper alloys and corrosion-resistant materials includes:

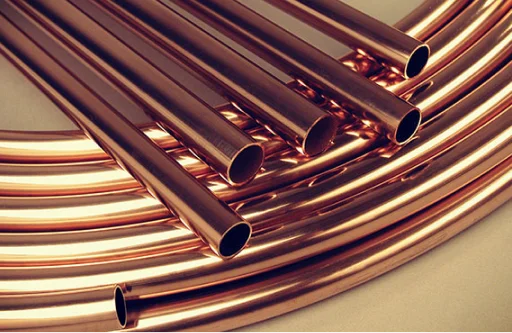

Copper Pipes & Tubes
Various grades of copper tubing for plumbing, HVAC, and industrial applications.

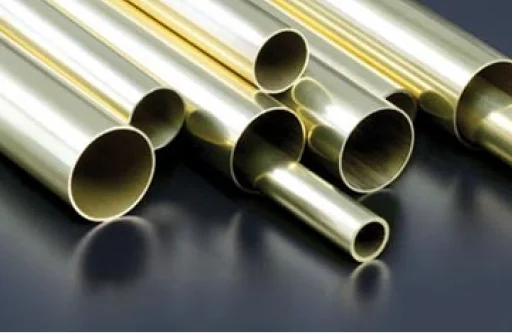

Brass Pipes & Tubes
Various brass alloys offering good machinability and moderate corrosion resistance.

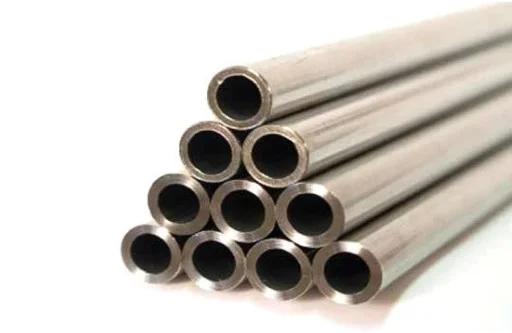

Nickel Alloy Pipes & Tubes
Explore higher nickel alloys for even more severe corrosive environments.
Final Call to Action
Are you seeking highly reliable Copper Nickel 70/30 Pipes & Tubes - UNS C71500 for your demanding marine, offshore, desalination, or heat exchanger applications? USA Piping Solution is your premier global supplier. We provide top-quality CuNi 70/30 Pipes and Copper Nickel C71500 Tubes, available in both seamless and welded forms, manufactured to rigorous international standards like ASTM B466 UNS C71500. Secure the long-term performance and corrosion resistance your critical systems demand.
Choose USA Piping Solution for:
✅ Access to extensive inventory for prompt delivery.
✅ Seamless and welded options to suit your specific needs.
✅ Custom lengths and processing available.
✅ Full certification and traceability with global shipping expertise.
eady to specify CuNi 70/30 for your project? Request your personalized quote today! Or, contact our experienced technical team for expert guidance on selecting the right Marine Grade Cu-Ni Tubing for your application. Let USA Piping Solution be your partner in corrosion control.
Request Your Copper Nickel 70/30 Pipes & Tubes Quote Today!
Application Industries
Boilers

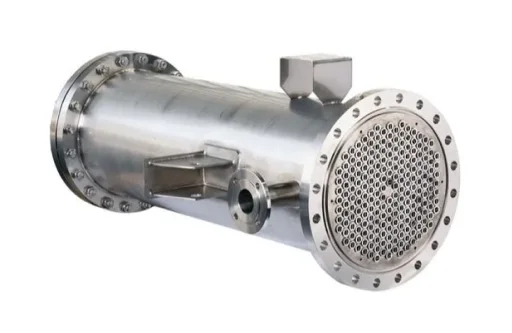

Heat Exchangers
