In the demanding arena of industrial materials, where harsh conditions are the norm, certain alloys rise above the rest. Monel 400 Pipes & Tubes certainly belong in that elite category, renowned for their formidable blend of high strength and remarkable resistance across a wide spectrum of corrosive environments. Here at USA Piping Solution, we operate as both a key manufacturer and a deeply knowledgeable supplier of this vital nickel-copper alloy, also known by its designation UNS N04400. We routinely support critical operations in marine engineering, chemical plant construction, oil and gas extraction, and other sectors where material failure is simply not acceptable. Understanding these challenges, we provide Monel 400 in both seamless and welded forms, meticulously produced to meet exacting standards. For reliable sourcing, insightful technical support, and efficient global delivery of premier Monel 400 tubulars, look no further than USA Piping Solution.

Unpacking Monel 400: More Than Just a Nickel-Copper Alloy

Monel 400 isn't a newcomer; it's a well-established nickel-copper alloy with a legacy built on toughness and exceptional corrosion resistance. Its typical makeup – roughly two-thirds nickel and one-third copper, plus small, controlled amounts of iron and manganese – gives it a unique performance profile. Interestingly, this composition closely mirrors the naturally occurring nickel ore from Ontario's Sudbury mines, leading some to call it a "puritan alloy."

But its real significance lies not in its history, but in how it performs under pressure. What makes Monel 400 stand out? It demonstrates impressive resistance against many reducing media, a common challenge for lesser alloys. It's particularly noted for holding its own against hydrofluoric acid and fluorine gas, environments notorious for attacking many metals. Furthermore, Monel 400 handles alkaline solutions with ease and shows excellent resistance to neutral and alkaline salts. Its performance in marine environments is legendary; it strongly resists corrosion from fast-flowing seawater or brackish water, making it an automatic consideration for naval architecture and offshore structures.

Beyond its chemical resilience, Monel Alloy 400 Tubes bring considerable mechanical strength and good toughness to the table. This performance holds true across a surprisingly broad temperature range, from cryogenic conditions up to around 538°C (1000°F). It's important to note that Monel 400 gets its strength primarily from cold working, as it doesn't respond to hardening via heat treatment like steels do. It’s this potent combination – versatile corrosion resistance coupled with inherent strength and toughness – that cements Monel 400's role as a go-to problem-solver for engineers facing severe industrial challenges.

Monel 400 Pipes & Tubes: Meeting the Specifications

For Monel 400 to perform reliably in critical systems, it must meet precise industry specifications. USA Piping Solution ensures that all Monel 400 Pipes & Tubes supplied conform strictly to these established benchmarks, guaranteeing quality and consistency.

Technical Specifications

Specification Area	Key Details and Relevant Standards
Alloy Identifiers	Monel 400, Alloy 400, UNS N04400, W.Nr. 2.4360
Core Standards	ASTM B165 / ASME SB165: The primary specification for seamless Monel 400 pipe and tube.
ASTM B725 / ASME SB725:	A key standard for welded Monel 400 pipe.
ASTM B163 / ASME SB163:	Covers seamless nickel alloy tubes for condensers/heat exchangers.
ASTM B730 / ASME SB730:	Pertains to welded Monel 400 tubes.
Other potentially applicable specs	Include B829 (Seamless Gen. Req.), B775 (Welded Pipe), B751 (Welded Tube), AMS 4574 (Aerospace).
Outer Diameter (OD) Range	We supply sizes ranging from small fractional tubing (e.g., 1/4" / 6.35mm) up to larger NPS pipe (e.g., 8" seamless, even larger welded).
Wall Thickness (WT) Range	Covers the spectrum from thin-wall condenser tubes (e.g., 0.020" / 0.5mm) through heavy pipe schedules like Sch 160 or XXS.
Length Options	Available in standard single or double random lengths, or precision cut-to-length based on your specific requirements (often up to 6 or 12 meters).
Manufacturing Forms	Seamless: Offers ultimate structural integrity. Monel 400 Seamless Tube is a common request.
Welded:	A practical alternative, especially for larger sizes. High-quality welding (TIG, PAW) ensures reliability. Includes Monel 400 Welded Pipes.
Standard End Finishes	Typically Plain End (PE) or Bevelled End (BE) for ease of welding. Threaded ends possible by request.
Material Temper	Most often supplied Annealed for best corrosion resistance/ductility. Stress-Relieved or specific Cold-Worked tempers can be sourced for higher strength needs.

Confirming the exact standard and required condition (e.g., annealed vs. stress-relieved) is crucial when ordering.

The Chemical Recipe & Resulting Strength

Monel 400's standout performance characteristics are intrinsically linked to its unique nickel-copper chemical foundation and the mechanical properties that result.

Chemical Composition (Typical)

To deliver its signature resistance and strength, the chemical balance of Monel 400 (UNS N04400) is carefully maintained within specific limits:

Element	Symbol	Typical Content (% by Weight)	Its Contribution to the Alloy's Character
Nickel	Ni	63.0% Minimum	As the primary constituent, nickel provides the backbone for resistance to many corrosives, especially alkaline solutions, and contributes significantly to toughness and high-temperature capabilities.
Copper	Cu	28.0 – 34.0%	Working alongside nickel, copper notably enhances resistance to reducing acids, neutral and alkaline salts, and famously, seawater. It also aids resistance to biofouling.
Iron	Fe	≤ 2.5%	Its presence is controlled to ensure the desired balance of corrosion resistance and mechanical properties is maintained.
Manganese	Mn	≤ 2.0%	Added for strength, improved hot workability, and to manage the effects of sulfur during melting.
Silicon	Si	≤ 0.5%	Primarily used as a deoxidizer in the alloy production process.
Carbon	C	≤ 0.3%	Levels are kept reasonably low to preserve good ductility and facilitate welding.
Sulfur	S	≤ 0.024%	Restricted impurity; minimizing sulfur is important for maximizing toughness and weld quality.

These ranges are typical per standards like ASTM B165. Always consult the specific material certification for the exact chemistry of a given heat.

Mechanical Properties Profile

In its commonly supplied annealed state, Monel 400 offers a robust combination of strength and formability:

Property	Typical Minimums (Annealed)	What This Means in Practice
Tensile Strength (UTS)	≥ 480 MPa (≥ 70 ksi)	Shows good resistance to being pulled apart, indicating solid overall strength.
Yield Strength (0.2% Offset)	≥ 170 - 195 MPa (≥ 25 - 28 ksi)	Represents the stress needed to cause permanent stretching; provides good resistance to deformation under typical loads.
Elongation (% in 50mm/2")	≥ 35 - 40%	This high value signifies excellent ductility, allowing the material to be readily formed, bent, and fabricated without fracture.
Hardness (Rockwell B)	Typically 60 - 80 HRB (Approx. 110-150 HB)	Reflects its relatively workable nature in the annealed state, aiding machinability (though care is needed to avoid work hardening).
Elastic Modulus	Approx. 179 GPa (26,000 ksi)	Indicates the material's inherent stiffness.

Remember, cold working Monel 400 dramatically increases strength and hardness but comes at the cost of reduced ductility. Specific tempers can be targeted if higher strength is the primary driver.

Available Forms and Conditions

To suit different design philosophies and fabrication techniques, USA Piping Solution provides Monel 400 Pipes & Tubes in several key formats:

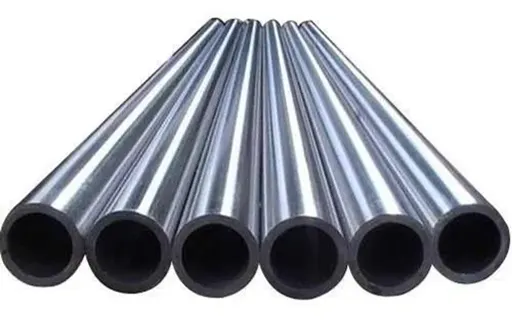

1. Monel 400 Seamless Pipe & Tube:
• Crafted through processes like extrusion or piercing, eliminating any weld seams.
• This ensures maximum material uniformity and pressure integrity, making Monel 400 Seamless Tube the go-to for highly critical services, especially under high pressure or in heat exchangers where leak tightness is paramount (often per ASTM B163). The primary pipe standard is ASTM B165 Monel Pipe.
2. Monel 400 Welded Pipe & Tube:
• Constructed by forming Monel 400 strip or plate and then joining the longitudinal seam using advanced welding methods like TIG or Plasma Arc.
• Monel 400 Welded Pipes (e.g., per ASTM B725/B775) and tubes (e.g., per ASTM B730/B751) offer a practical and frequently more economical path, especially when larger diameters are needed. High-quality welding ensures reliable performance.
3. Material Condition Options:
• Annealed: This softest condition offers the best corrosion resistance and maximum ductility, making it ideal for subsequent forming or bending operations. It's the most common supply state.
• Stress-Relieved: Sometimes applied after significant forming or welding, this heat treatment reduces internal stresses which can improve resistance to stress corrosion cracking, without drastically changing the base mechanical properties.
• Cold-Worked / Hard Temper: For applications demanding higher strength or hardness than annealed material provides, Monel 400 can be supplied in various cold-worked tempers. This increases strength but makes further forming more difficult.
4. Shape Possibilities:
• While round profiles dominate the market for Monel 400 tubulars, inquiries for square, rectangular, or other custom shapes can be explored for specific projects, potentially involving secondary fabrication.

Where Monel 400 Makes Its Mark: Applications & Industries

The powerful combination of broad corrosion resistance and inherent strength makes Monel 400 Pipes & Tubes indispensable across industries facing truly demanding operating conditions:

• Marine & Naval: A traditional stronghold. Its superb resistance to seawater and brackish water makes it ideal for saltwater piping, pump shafts, valve components in marine systems, propeller shafts, seawater-cooled heat exchangers, and various offshore platform hardware.
• Chemical Processing: Handles a diverse range of corrosive chemicals effectively, including hydrofluoric acid (a particularly challenging acid), sulfuric acid under specific concentration/temperature limits, caustic alkaline solutions, and many organic compounds. Finds use in reactor vessels, process piping, valve bodies, pump internals, and heat transfer equipment.
• Oil & Gas Sector: Valuable for components exposed to corrosive crude oil fractions, sour gas (H₂S environments, often meeting NACE requirements), brine solutions, and offshore conditions. Used in platform structures, downhole tooling, valve and pump trim, and process heat exchangers.
• Heat Exchangers & Condensers:Monel Alloy 400 Tubes are frequently chosen for units handling seawater, brackish water, industrial cooling water, or specific chemical process streams where the longevity of less resistant alloys would be compromised.
• Power Generation: Utilized in certain areas like feedwater heaters, steam generator tubing exposed to specific water chemistries, and components handling high-purity water or potentially corrosive cooling loops.
• Aerospace Technology: Selected for specialized applications requiring a combination of strength, corrosion resistance, and reliable performance, such as critical fasteners, instrumentation components, or parts within fuel systems.
• Pollution Control Systems: Components within industrial scrubbers or systems designed to handle corrosive exhaust gases can benefit from Monel 400's resilience.
• Valves, Pumps & Fittings: Essential internal parts like stems, seats, plugs, discs, impellers, and shafts rely on Monel 400's ability to resist both corrosion and wear in demanding fluid handling services.

Its ability to perform reliably where many other metals struggle solidifies Monel 400's reputation as a critical engineering material.

Monel 400 Pipes & Tubes: Navigating Sizes

USA Piping Solution offers Monel 400 Pipes & Tubes across a comprehensive range of industry-standard pipe schedules and precise tubing dimensions. The following provides a general overview of commonly available sizes; our actual inventory is significantly more detailed.

(Insert Size Chart Table - Structure this logically. Include common NPS Pipe Sizes (e.g., 1/2" through 8") listing typical Schedules (10S, 40S, 80S, 160) and their wall thicknesses. Separately list common Tubing ODs (e.g., 1/4" to 2" or more) with typical associated Wall Thicknesses in BWG, inches, or mm.)

Example Snippet (Requires substantial expansion and better formatting):

Typical Pipe Sizes (Ref: ASTM B165 / B725 / B775 / B829)

NPS (inches)	OD (inches)	Common Schedules & Walls (inches)
1/2"	0.840"	Sch 10S (0.083), Sch 40S (0.109), Sch 80S (0.147)
1"	1.315"	Sch 10S (0.109), Sch 40S (0.133), Sch 80S (0.179)
2"	2.375"	Sch 10S (0.109), Sch 40S (0.154), Sch 80S (0.218)
4"	4.500"	Sch 10S (0.120), Sch 40S (0.237), Sch 80S (0.337)

Typical Tube Sizes (Ref: ASTM B163 / B730 / B751)

OD (inches)	Common Wall Thicknesses (inches / mm / BWG)
1/4"	0.035" (0.89mm), 0.049" (1.24mm)
1/2"	0.049" (1.24mm), 0.065" (1.65mm, ~16BWG)
3/4"	0.065" (1.65mm), 0.083" (2.11mm, ~14BWG)
1"	0.065" (1.65mm), 0.083" (2.11mm), 0.109" (2.77mm, ~12BWG)

This overview is simplified. We stock and source an extensive matrix of OD/WT combinations. For precise availability, please provide your specific dimensional requirements (OD, Wall Thickness, Length) when inquiring.

Assured Quality: Certifications and Standards Compliance

When specifying high-performance alloys like Monel 400, documented proof of quality and adherence to standards is non-negotiable. USA Piping Solution provides this assurance for all Monel 400 Pipes & Tubes:

• Compliance with ASTM / ASME Standards: All materials are certified as conforming fully to the requirements of the relevant ASTM standards (B165, B163, B725, B730, etc.) and their corresponding ASME Boiler and Pressure Vessel Code SB designations.
• UNS N04400 Verification: Material chemistry and properties align with the internationally recognized UNS N04400 designation for this nickel-copper alloy.
• ISO 9001:2015 Framework: Our quality procedures and sourcing practices are managed within an ISO 9001 certified system, ensuring consistency and reliability.
• Certified Mill Test Reports (MTRs): Standard documentation includes comprehensive MTCs per EN 10204 3.1, guaranteeing full traceability through heat/lot numbers and providing verified chemical analysis and mechanical test results performed by the originating mill.
• Optional EN 10204 3.2 Certification: We can arrange for third-party inspector witnessing and validation of tests and MTCs to meet the requirements of EN 10204 3.2 when specified.
• Third-Party Inspection (TPI) Coordination: We readily accommodate and manage inspections by client-approved or independent agencies (Lloyds, DNV, ABS, etc.) for supplementary verification.
• NACE MR0175 Potential: While Monel 400 often meets NACE requirements for sour service, suitability for specific H₂S environments should always be confirmed based on the exact conditions and material condition (annealed vs. cold worked).

Why Partner with USA Piping Solution for Monel 400?

Choosing USA Piping Solution for your Monel 400 Pipes & Tubes requirements offers tangible benefits that streamline procurement and ensure project success:

• Inventory Depth & Sourcing Strength: Our significant stock of common Monel 400 sizes, combined with strong mill relationships, means faster access to materials, both standard and non-standard.
• Expertise in Both Seamless & Welded: We supply and understand both production methods, enabling us to offer objective advice on the best technical and commercial fit for your application.
• Value-Added Customization: Utilize our precision cutting services to get exact lengths. We can also explore options for specific finishes or end preps to simplify your fabrication process.
• Unwavering Commitment to Quality: Our rigorous adherence to international standards, comprehensive certification packages, and optional TPI provide verifiable assurance of material integrity.
• Proficient Global Logistics: We possess the experience to manage shipments efficiently across the US and internationally, ensuring timely, secure delivery with all necessary documentation.
• Specialized Alloy Knowledge: Our team understands the unique characteristics, benefits, and potential challenges of working with Monel 400, offering support beyond basic supply.

Customer-Focused Service: We believe in clear communication, rapid responses to inquiries and quotes, and dedicated management of your order from initiation to completion.
