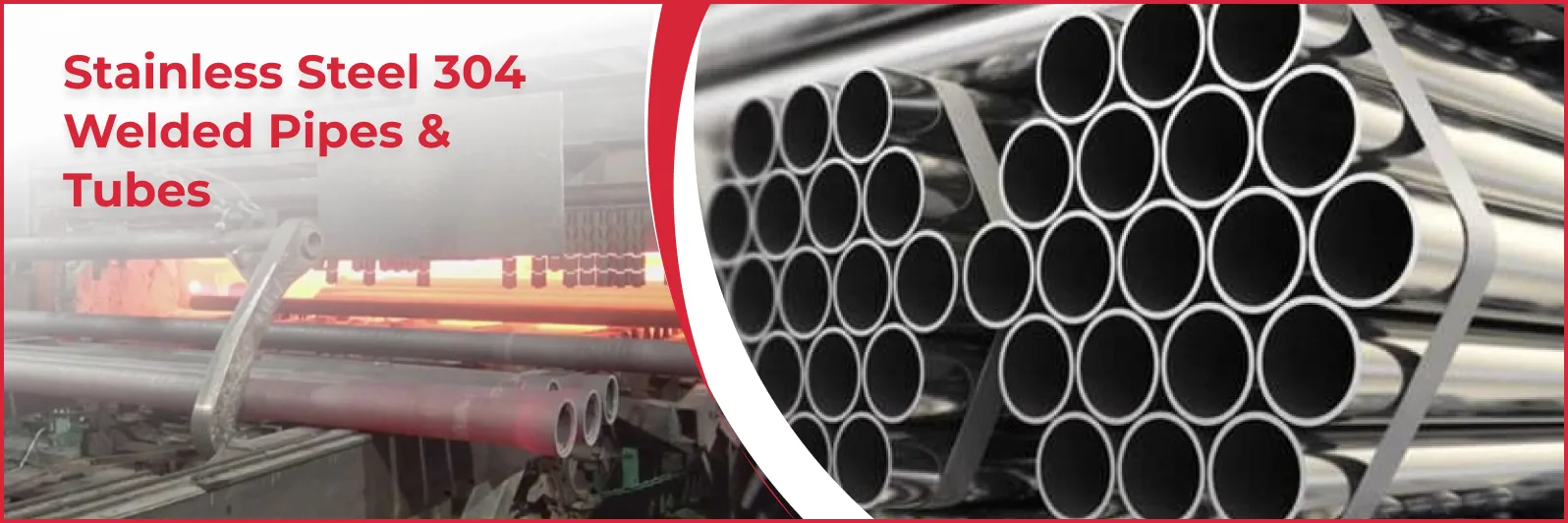

Technical Overview of Stainless Steel 304 Welded Pipe
Stainless Steel 304 (UNS S30400 / EN 1.4301) is an austenitic chromium-nickel alloy conforming to ASTM A312 TP304 for Stainless steel welded pipe manufacture. The 18% chromium and 8–10% nickel content produces a stable face-centred cubic microstructure that delivers a balance of corrosion resistance, formability, and weldability unmatched by ferritic or martensitic grades at equivalent cost.
The ERW (Electric Resistance Welded) process fuses strip edges under high-frequency induction current, producing a narrow, metallurgically bonded seam without filler metal. EFW (Electric Fusion Welded) pipe is produced from plate or coil using a shielded-arc process and is more suited to larger diameters above 16″ OD. Both weld types meet the hydrostatic test requirements of ASTM A312 Section 14 and ASME B36.19M schedules for pressure applications.
Dual Certification (304 / 304L): Many heats comply simultaneously with both 304 and 304L composition limits (C ≤ 0.030%). Where procurement documents specify dual-cert, verify the MTC shows both UNS S30400 and S30403 compliance — this is acceptable under ASTM A312 and eliminates the need for post-weld heat treatment in most service environments.
In welded tube applications under ASTM A249, wall thickness tolerances are tighter (±10% on wall per ASTM A999) versus seamless, making weld integrity critical. Inline ultrasonic or eddy-current inspection at the mill identifies weld defects before shipment. For instrument tubing under ASTM A269, the as-welded or bright-annealed condition is specified depending on surface cleanliness requirements.
The passive oxide film (Cr₂O₃) regenerates in oxidising environments and resists chloride-induced pitting up to approximately 0.5% Cl⁻ at ambient temperature. For service exceeding this threshold such as coastal chemical plants or offshore utility lines SS 316L or duplex 2205 should be evaluated. At temperatures above 425°C sustained, carbide sensitisation at grain boundaries can degrade intergranular corrosion resistance; 304L or stabilised grades (321, 347) are preferred for such duty.
ERW Manufacturing Process Flow of SS 304 Welded Pipe
The ERW process converts hot-rolled stainless strip into finished pipe through a continuous, in-line sequence. Each stage is governed by ASTM A312 and mill-specific quality plans.
Grade Comparison: SS 304 vs Related Austenitic Grades
Understanding when to specify SS 304 versus a related grade is critical for material selection. The table below compares key differentiation points — not just composition — to support engineering and procurement decisions.
When specifying grade, always cross-check the service environment with ASTM A380/A967 passivation requirements and applicable pressure design codes (ASME B31.3, EN 13480). For Cl⁻ concentrations above 200 ppm at elevated temperatures, consult a corrosion engineer before specifying 304.
ASTM A312 TP304 SS 304 Chemical Composition
Composition limits are defined in ASTM A312 Table 1. The carbon ceiling of 0.08% max distinguishes standard 304 from the 304L low-carbon variant (0.030% max). Heat analysis on MTC must meet these limits; product analysis permits slightly wider tolerances per ASTM A480.
| Element | Symbol | Min % | Max % | Role in Grade |
|---|---|---|---|---|
| Carbon | C | — | 0.08 | Limits sensitisation risk; low C = 304L |
| Silicon | Si | — | 1.00 | Deoxidiser; aids high-temp oxidation resist. |
| Manganese | Mn | — | 2.00 | Austenite stabiliser; partial Ni substitute |
| Nickel | Ni | 8.00 | 10.50 | Austenite former; corrosion resistance |
| Phosphorus | P | — | 0.045 | Controlled to avoid hot cracking |
| Sulphur | S | — | 0.030 | Controlled; higher S in free-machining variants |
| Chromium | Cr | 18.00 | 20.00 | Primary passive film former; pitting resistance |
Note: Nitrogen (N ≤ 0.10%) is permitted in 304N (UNS S30451) to enhance strength. All other elements not listed are controlled to residual levels per ASTM A312. Verify heat analysis on MTC against the specific heat lot for critical applications.
Mechanical & Physical Properties of A312 TP304 Welded Stainless Steel Tubing
Values below are minimum requirements per ASTM A312 for annealed condition. Actual MTC values will typically exceed these minimums.
| Property | Value | Condition / Standard |
|---|---|---|
| Tensile Strength | 515 MPa (75 ksi) min | ASTM A312, annealed |
| Yield Strength (0.2%) | 205 MPa (30 ksi) min | ASTM A312, annealed |
| Elongation | 35% min in 50 mm (2″) | ASTM A312 |
| Hardness | 92 HRB max / 201 HV max | ASTM A480 |
| Density | 7.93 g/cm³ | Typical, annealed |
| Elastic Modulus | 193 GPa (28 × 10⁶ psi) | At 20°C |
| Thermal Conductivity | 16.2 W/m·K | At 100°C |
| Coeff. Thermal Expansion | 17.2 × 10⁻⁶ /°C | 20–300°C range |
| Specific Heat Capacity | 500 J/kg·K | At 20°C |
| Electrical Resistivity | 72 μΩ·cm | At 20°C |
Physical property values are indicative and may vary slightly by product form and heat treatment. For design calculations, use values from ASME BPVC Section II Part D or EN 10088-3 as appropriate to your code of design.
Dimensional Range & Schedule Chart for SS 304 Welded Pipe
Welded SS 304 pipe is available in schedules per ASME B36.19M (stainless) and B36.10M (carbon steel schedules retained for interchangeability). The table below shows commonly stocked schedules for selected NB sizes. Non-standard OD and wall combinations are available to order with lead time.
| NB (in) | OD (mm) | SCH 5S (mm) | SCH 10S (mm) | SCH 40S (mm) | SCH 80S (mm) |
|---|---|---|---|---|---|
| 1/4″ | 13.72 | 1.65 | 2.24 | 3.02 | 3.73 |
| 1/2″ | 21.34 | 1.65 | 2.11 | 2.77 | 3.73 |
| 1″ | 33.40 | 1.65 | 2.77 | 3.38 | 4.55 |
| 2″ | 60.33 | 1.65 | 2.77 | 3.91 | 5.54 |
| 4″ | 114.30 | 1.65 | 3.05 | 6.02 | 8.56 |
| 6″ | 168.28 | 2.11 | 3.40 | 7.11 | 10.97 |
| 8″ | 219.08 | 2.77 | 3.76 | 8.18 | 12.70 |
| 12″ | 323.85 | 3.18 | 4.57 | 9.53 | 12.70 |
Wall tolerance: ±12.5% for welded pipe per ASTM A999. Length: standard random (SRL) 4.8–7.0 m; double random (DRL) 7.3–14.6 m; or cut-to-length up to 26 m subject to mill capability. Confirm tolerance and schedule availability for your NB and wall combination at time of enquiry.
Industries & Application Sectors of Stainless Steel 304 Welded Pipes & Tubes
SS 304 welded pipe is specified across a broad range of processing industries due to its combination of corrosion resistance, hygienic surface quality, and weldability. Below are the primary application sectors where A312 TP304 welded pipe is routinely used.
- ▸ Food & Beverage processing lines, dairy plant, brewing
- ▸ Pharmaceutical manufacturing, CIP/SIP lines
- ▸ Chemical processing — dilute acids, alkalis, solvents
- ▸ Water treatment, desalination feed lines, condensate
- ▸ HVAC & chilled water distribution systems
- ▸ Architectural structural tubing, handrailing, facades
- ▸ Heat exchanger shells — ASME Sec. VIII Div. 1
- ▸ Pulp & paper, textile dyeing lines
- ▸ Cryogenic service (LN₂ / LO₂ transfer lines)
Not recommended for: Environments with sustained exposure to chloride concentrations above 200 ppm at temperatures above 60°C; strong reducing acids (HCl, H₂SO₄ above 5%); or high-temperature oxidising service above 870°C continuous. Consider SS 316L, 317L, or duplex 2205 for these conditions.
