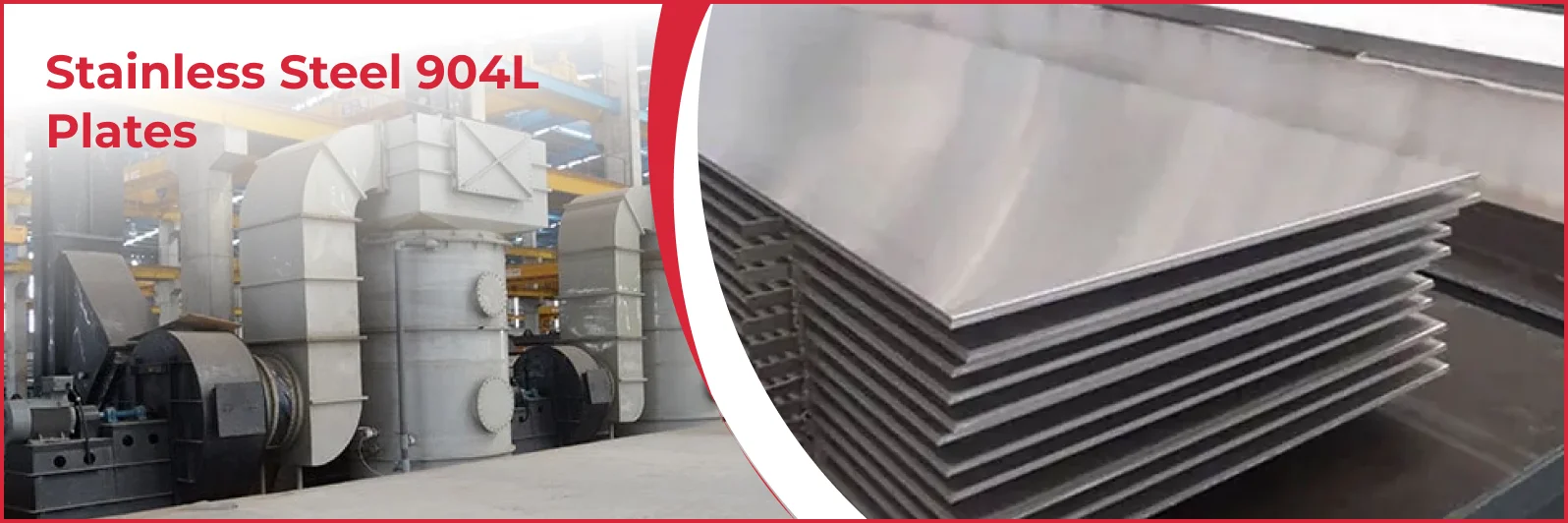

Stainless Steel 904L Plates Manufacturer & Supplier
The USA Piping Solution has the best SS 904L Plates that is a high performance low-carbon austenitic stainless steel that is praised by its high corrosion resistance. This has been made possible by the high alloyed composition of the Stainless Steel 904L Plates that has large amounts of nickel, chromium, molybdenum and copper. This 904l stainless steel plate is specifically made to resist highly aggressive environments and has excellent resistance to dilute Sulphuric acid and good resistance against pitting, crevice corrosion, stress corrosion cracking, and intercrystalline corrosion. This high level of robustness of the 904l plate is further promoted by the low carbon nature of the material.
Some international standards are used to define this specialized grade, such as UNS N08904 (UNS S08904), EN 1.4539 (X1NiCrMoCu25-20-5) and AISI 904L. It has a stable fully austenitic structure and it is less susceptible to the formation of the harmful sigma phase than other high-molybdenum grades. The very good anti-magnetic property of the 904l plate is an important technical characteristic that makes it suitable in some special components. Each 904l stainless steel plate is of the highest quality.
Although the corrosion behaviour of the SS 904L Plate is the best, it is necessary to mention that it is not a high-strength steel. The 904l plate is an expensive material to machine and is relatively expensive because its composition is highly alloyed. Nonetheless, it is difficult to overestimate this initial investment by the fact that the material has unmatched longevity in critical use when it comes to long-term durability. USA Piping Solution Stainless Steel 904L plates are essential in situations that cost more to fail, and corrosion is critical, such as the Petrochemical and Gas Production, Chemical and Pharmaceutical Plants, Paper Mills, Treatment Plants, harsh Marine Environments, and specialized in the Luxury Watch Industry. We have the complete selection of sizes of SS 904L Plates.
Table of Contents
- Stainless Steel 904L Plates Specifications
- 904l Stainless Steel Plate Chemical Composition
- Mechanical Properties of 904L Stainless Steel Plates
- Equivalent Grades of SS 904L Plates
- Temperature Range of SS 904L Plate
- Thickness Range of 904L Stainless Steel Tread Plate
- Gauge Thickness of AISI 904L Hot Rolled Plate
- Applications of Stainless Steel 904L Plates
- Related Products
Stainless Steel 904L Plates Specifications
This section summarizes the trade names, compliance standards, and manufacturing details for 904l plate and sheet products.
| Parameter | Specification Details |
|---|---|
| Trade Names & Standards | AISI 904L, INOX 904L, SUS 904L |
| ASTM/ASME Standard | ASTM A240 / ASME SA 240 |
| UNS/WNR | UNS N08904 / WNR 1.4539 |
| Other Standard | X1-Ni-Cr-Mo-Cu-25-20-5 |
| Origin | Japanese, Indian, Korean, European, American |
| Modulus Technique | Forged, Cold Rolled, Hot Rolled |
| Forms Available | Sheet, Coil, Strip, Foil, Plate |
| Sheet Edges | Round, Rolled, Slit, Square |
| Hot Rolled Hardness | Soft, Quarter, Hard, Half Hard |
| Welding Methods | PLASMA, GMAW, GTAW, SAW |
| Cutting Methods | Waterjet, Plasma, Laser, Oxy-propane |
| Sheet Finish | Brushed, Glossy, Sandblasted, Mirror |
Looking to Buy Steel 904L Plates
904l Stainless Steel Plate Chemical Composition
The high content of Nickel, Chromium, and Molybdenum, along with Copper, gives this 904l stainless steel plate its superior corrosion resistance.
| Element | Min (%) | Max (%) |
|---|---|---|
| C (Carbon) | – | 0.020 |
| Mn (Manganese) | – | 1.20 |
| P (Phosphorus) | – | 0.030 |
| S (Sulfur) | – | 0.010 |
| Si (Silicon) | – | 0.70 |
| Cr (Chromium) | 19.00 | 21.00 |
| Ni (Nickel) | 24.00 | 26.00 |
| Mo (Molybdenum) | 3.00 | 4.50 |
| N (Nitrogen) | – | 0.50 |
| Cu (Copper) | 1.20 | 2.00 |
Mechanical Properties of 904L Stainless Steel Plates
The following are the minimum requirements for 904L Stainless Steel plates and sheets, typically conforming to ASTM A240.
| Property | Minimum Value (MPa) | Minimum Value (ksi) |
|---|---|---|
| Ultimate Tensile Strength (Rm) | 490 MPa | 71 ksi |
| 0.2% Proof Yield Strength (Rp0.2) | 220 MPa | 32 ksi |
| Elongation (% in 50mm) | 35-36% | |
Equivalent Grades of SS 904L Plates
The equivalent grades confirm the international recognition and specification for the SS 904L Plate grade, also known by UNS N08904.
| Region | Standard | Grade |
|---|---|---|
| EU (European Union) | EN | X1NiCrMoCu25-20-5 / 1.4539 |
| USA | UNS | 904L / N08904 |
| France | AFNOR | Z2NCDU25-20 |
| England | BS | 904S13 |
| Sweden | SS | 2562 |
Temperature Range of SS 904L Plate
This range likely refers to a specific manufacturing or operating parameter, such as a maximum service temperature or a recommended working temperature for the SS 904L Plate.
| Properties | Values |
|---|---|
| Temperature Range | 72193390 |
Thickness Range of 904L Stainless Steel Tread Plate
| Surface Area per Unit weight (kg/m²) | (lbs/ft²) | Size Range | Thickness (mm) |
|---|---|---|---|
| 7.381584 | 1.512 | 30 x 120 | 0.9017 |
| 3.690792 | 0.756 | 48 x 120 | 0.45212 |
| 3.690792 | 0.756 | 48 x 96 | 0.45212 |
| 4.921056 | 1.008 | 30 x 120 | 0.5969 |
| 3.07566 | 0.630 | 36 x 120 | 0.381 |
| 3.07566 | 0.630 | 36 x 96 | 0.381 |
| 3.690792 | 0.756 | 36 x 120 | 0.45212 |
| 6.15132 | 1.260 | 36 x 120 | 0.73914 |
| 6.15132 | 1.260 | 36 x 96 | 0.73914 |
| 6.15132 | 1.260 | 48 x 144 | 0.73914 |
| 4.921056 | 1.008 | 48 x 120 | 0.5969 |
| 3.690792 | 0.756 | 36 x 96 | 0.45212 |
| 7.381584 | 1.512 | 30 x 96 | 0.9017 |
| 6.15132 | 1.260 | 36 x 144 | 0.73914 |
| 4.921056 | 1.008 | 36 x 144 | 0.5969 |
| 6.15132 | 1.260 | 30 x 96 | 0.73914 |
| 4.921056 | 1.008 | 48 x 144 | 0.5969 |
| 6.15132 | 1.260 | 30 x 120 | 0.73914 |
| 4.921056 | 1.008 | 30 x 96 | 0.5969 |
| 6.15132 | 1.260 | 48 x 120 | 0.73914 |
| 6.15132 | 1.260 | 48 x 96 | 0.73914 |
| 4.921056 | 1.008 | 36 x 120 | 0.5969 |
| 4.921056 | 1.008 | 36 x 96 | 0.5969 |
| 7.381584 | 1.512 | 36 x 96 | 0.9017 |
| 4.921056 | 1.008 | 48 x 96 | 0.5969 |
Gauge Thickness of AISI 904L Hot Rolled Plate
| Nominal Decimal (+/- Inches) | (Approximate-Inches) | Metal Gauge |
|---|---|---|
| 0.0050 | 0.1046 | 12 |
| 0.0015 | 0.0209 | 25 |
| 0.0040 | 0.0673 | 15 |
| 0.0010 | 0.0149 | 28 |
| 0.0030 | 0.0418 | 19 |
| 0.0030 | 0.0598 | 16 |
| 0.0030 | 0.0478 | 18 |
| 0.0050 | 0.0897 | 13 |
| 0.0020 | 0.0239 | 24 |
| 0.0020 | 0.0299 | 22 |
| 0.0025 | 0.0329 | 21 |
| 0.0030 | 0.0359 | 20 |
| 0.0080 | 0.1644 | 8 |
| 0.0080 | 0.1793 | 7 |
| 0.0020 | 0.0269 | 23 |
| 0.0030 | 0.0538 | 17 |
| 0.0015 | 0.0179 | 26 |
| 0.0040 | 0.0747 | 14 |
| 0.0070 | 0.1345 | 10 |
| 0.0050 | 0.1196 | 11 |
| 0.0080 | 0.1495 | 9 |
Applications of Stainless Steel 904L Plates
The primary use for 904L plates is in demanding, corrosive environments where standard stainless steel grades are inadequate, leveraging the strength of the UNS N08904 grade.
- Process Equipment in the chemical industry and petrochemical industry.
- Bleaching equipment and bleaching tanks in the pulp and paper industry.
- Combustion gas desulphurisation plants and flue gas cleaning equipment.
- Handling of sulphuric and phosphoric acid.
- Seawater handling, desalination plants, and general marine environment use.
- Oil refinery components and chemical plants.
- Hydrometallurgy.
- Equipment for the food and beverage and pharmaceuticals industries.
