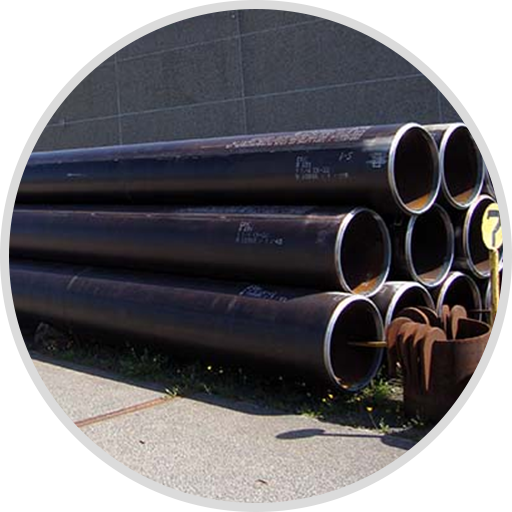

BS 3059 Grade 360 Low Carbon Steel Tubes are commonly used in boiler, heat exchanger and high temperature applications because of their high strength, durability and resistance to pressure. These tubes are produced according to British Standards and provide high levels of mechanical properties, weldability and give high performance in harsh industrial environments like power plants, petrochemical plants, refineries, etc. They are balanced chemically to provide good formability and corrosion resistance and can be used for seamless and welded components. The USA Piping Solution offers a range of BS 3059 Grade 360 Tubes in multiple sizes, thicknesses, and specifications that are suitable for a wide variety of industrial applications. Each tube is thoroughly tested to guarantee dimensional precision, strength and extended service life at high temperatures and pressures.
Specification of BS 3059 Grade 360 Tubes
| Feature | Details |
|---|---|
| Standard | BS 3059 Part II |
| Steel Grade | Grade 360 |
| Manufacturing Craft | Cold Rolled and Cold Drawn |
| Type | Seamless / ERW / Welded / Fabricated |
| Outside Diameter (OD) | 5 mm - 90 mm |
| Nominal Size Range | 1/2" NB to 36" NB |
| Wall Thickness | 0.5 mm - 15 mm |
| Schedules | SCH 40, 80, 160, XS, XXS, and all other standard schedules |
| Length | 3 Meters to 18 Meters (or custom per requirement) |
| End Finishing | Plain End, Beveled End, Threaded |
| Dimensional Tolerance | Cold Drawn: +/- 0.1 mm | Cold Rolled: +/- 0.0 mm |
Chemical Composition of BS 3059 Grade 360 Tubes
| Standard | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Silicon (Si) | Cr / Mo |
|---|---|---|---|---|---|---|
| BS3059-II 360 | ≤ 0.17 | 0.40 - 0.80 | ≤ 0.035 | ≤ 0.035 | 0.10 - 0.35 | - |
BS 3059 Grade 360 Tubes Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa Min) | Elongation (% Min) | Flatten Coefficient |
|---|---|---|---|---|
| 360 | 360 - 500 | 235 | 24 | 0.1 |
Types of BS 3059 Grade 360 Tubes

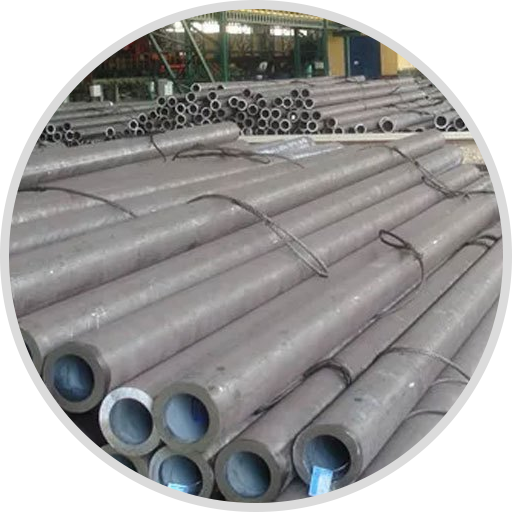

BS 3059 Grade 360 Seamless Tubes
Seamless Grade 360 tubes for boiler, superheater, heat exchanger and pressure service.

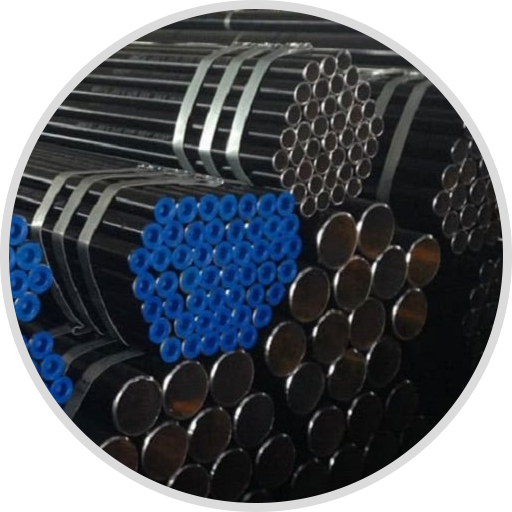

BS 3059 Grade 360 Cold Finished Tubes
Cold drawn and cold finished tubes supplied for accurate dimensions and clean surface finish.

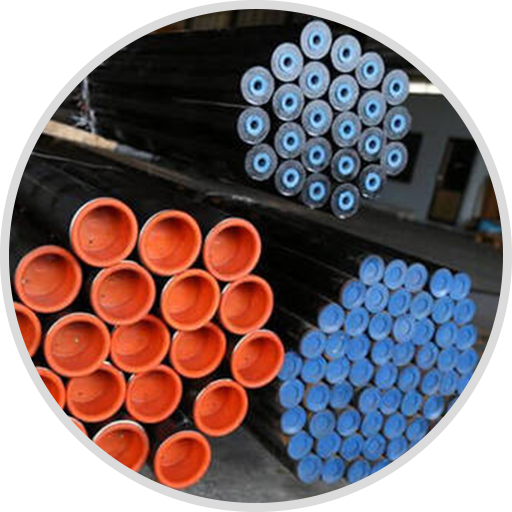

BS 3059 Grade 360 Hot Finished Tubes
Hot finished boiler tubes for industrial pressure systems and high-temperature applications.
Different Standards of Grade BS 3059 360 Boiler Tubes
| Region / Standard Body | Specifications Covered |
|---|---|
| ASTM / ASME (USA) | A53, A106, A179, A192, A210, A213, A249, A269, A312, A333, A334, A335, A500, A519, A556 |
| BS (British) | BS 3059, BS 1387 |
| DIN (German) | DIN 1629, DIN 2391, DIN 2448, DIN 17175, DIN 17456, DIN 17458 |
| JIS (Japanese) | JIS G3444, JIS G3445, JIS G3456, JIS G3459, JIS G3461 |
| EN (European) | EN 10216-1, EN 10216-2 |
Grade 360 vs Grade 320 Comparison
| Property / Feature | BS 3059 Grade 360 | BS 3059 Grade 320 |
|---|---|---|
| Material Type | Carbon Steel Tube | Carbon Steel Tube |
| Standard | BS 3059 Part 2 | BS 3059 Part 2 |
| Tensile Strength | 360 - 500 MPa | 320 - 460 MPa |
| Yield Strength | Minimum 235 MPa | Minimum 195 MPa |
| Temperature Resistance | Suitable for higher temperature applications | Suitable for moderate temperature applications |
| Pressure Handling Capacity | Higher pressure resistance | Lower pressure resistance compared to Grade 360 |
| Durability | Better mechanical strength and durability | Moderate durability |
| Weldability | Excellent | Excellent |
| Common Applications | Boilers, superheaters, heat exchangers, power plants | Low to medium pressure boilers and general engineering |
| Formability | Good | Good |
| Corrosion Resistance | Moderate | Moderate |
| Industrial Usage | Heavy industrial and high-pressure systems | General industrial piping systems |
Size Chart of Grade 360 Boiler Tubes
| NB Size (Inch) | OD (mm) | 5S | 10S | 20 | 30 | 40/40S | 60 | XS/80S | 100 | 120 | 140 | 160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 10.29 | - | 1.2 | - | - | 1.73 | - | 2.41 | - | - | - | - | - |
| 1/4" | 13.72 | - | 1.7 | - | - | 2.24 | - | 3.02 | - | - | - | - | - |
| 3/8" | 17.15 | - | 1.7 | - | - | 2.31 | - | 3.2 | - | - | - | - | - |
| 1/2" | 21.34 | 1.7 | 2.1 | - | - | 2.77 | - | 3.73 | - | - | - | 4.78 | 7.47 |
| 3/4" | 26.67 | 1.7 | 2.1 | - | - | 2.87 | - | 3.91 | - | - | - | 5.56 | 7.82 |
| 1" | 33.4 | 1.7 | 2.8 | - | - | 3.38 | - | 4.55 | - | - | - | 6.35 | 9.09 |
| 1 1/4" | 42.16 | 1.7 | 2.8 | - | - | 3.56 | - | 4.85 | - | - | - | 6.35 | 9.7 |
| 1 1/2" | 48.26 | 1.7 | 2.8 | - | - | 3.68 | - | 5.08 | - | - | - | 7.14 | 10.2 |
| 2" | 60.33 | 1.7 | 2.8 | - | - | 3.91 | - | 5.54 | - | - | - | 9.74 | 11.1 |
| 2 1/2" | 73.03 | 2.1 | 3.1 | - | - | 5.16 | - | 7.01 | - | - | - | 9.53 | 14.0 |
| 3" | 88.9 | 2.1 | 3.1 | - | - | 5.49 | - | 7.62 | - | - | - | 11.1 | 15.2 |
| 4" | 114.3 | 2.1 | 3.1 | - | - | 6.02 | - | 8.56 | - | 11.1 | - | 13.5 | 17.1 |
| 5" | 141.3 | 2.8 | 3.4 | - | - | 6.55 | - | 9.53 | - | 12.7 | - | 15.9 | 19.1 |
| 6" | 168.3 | 2.8 | 3.4 | - | - | 7.11 | - | 11.0 | - | 14.3 | - | 18.3 | 22.0 |
| 8" | 219.1 | 2.8 | 3.8 | 6.4 | 7.0 | 8.18 | 10.3 | 12.7 | 15.1 | 18.3 | 20.6 | 23.0 | 22.2 |
| 10" | 273.1 | 3.4 | 4.2 | 6.4 | 7.8 | 9.27 | 12.7 | 12.7 | 15.1 | 19.1 | 21.4 | 25.4 | 28.6 |
| 12" | 323.9 | 4.0 | 4.6 | 6.4 | 8.4 | 10.3 | 14.3 | 12.7 | 17.5 | 21.4 | 25.4 | 28.6 | 25.4 |
| 14" | 355.6 | 4.0 | 4.8 | 6.4 | 7.9 | 11.1 | 15.1 | 12.7 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 |
| 16" | 406.4 | 4.2 | 4.8 | 6.4 | 7.9 | 12.7 | 16.7 | 12.7 | 21.4 | 26.2 | 31.0 | 36.5 | 40.5 |
| 18" | 457.2 | 4.2 | 4.8 | 6.4 | 7.9 | 14.3 | 19.1 | 12.7 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 |
| 20" | 508.0 | 4.8 | 5.5 | 6.4 | 9.5 | 15.1 | 20.6 | 12.7 | 26.2 | 32.5 | 38.1 | 44.5 | 50.0 |
| 24" | 609.6 | 5.5 | 6.4 | 6.4 | 9.5 | 17.5 | 24.6 | 12.7 | 31.0 | 38.9 | 46.0 | 52.4 | 59.5 |
BS 3059 Grade 360 Pressure Rating Chart
| NPS (in) | OD (in) | Sch 10 | Sch 40 / STD | Sch 80 / XS | Sch 160 | XXS |
|---|---|---|---|---|---|---|
| 1/4 | 0.54 | - | 7985 | 10798 | - | - |
| 3/8 | 0.675 | - | 6606 | 9147 | - | - |
| 1/2 | 0.84 | - | 6358 | 8575 | 10908 | 17150 |
| 3/4 | 1.05 | - | 5273 | 7187 | 10220 | 14373 |
| 1 | 1.315 | - | 4956 | 6670 | 9316 | 13340 |
| 1 1/4 | 1.66 | - | 4133 | 5638 | 7380 | 11276 |
| 1 1/2 | 1.9 | - | 3739 | 5158 | 7247 | 10316 |
| 2 | 2.375 | - | 3177 | 4498 | 7097 | 8995 |
| 2 1/2 | 2.875 | - | 3460 | 4704 | 6391 | 9408 |
| 3 | 3.5 | - | 3024 | 4200 | 6132 | 8400 |
| 4 | 4.5 | - | 2581 | 3670 | 5782 | 7339 |
| 6 | 6.625 | - | 2071 | 3195 | 5318 | 6390 |
| 8 | 8.625 | 1420 | 1829 | 2841 | 4613 | 5147 |
| 10 | 10.75 | 1140 | 1664 | 2279 | 4558 | 5128 |
| 12 | 12.75 | 961 | 1601 | 2264 | 4324 | 4238 |
| 14 | 14 | 875 | 1313 | 2079 | 4375 | 4921 |
| 16 | 16 | 766 | 1148 | 2009 | 4404 | 4882 |
| 20 | 20 | 613 | 1225 | 1989 | 4288 | 4824 |
| 24 | 24 | 510 | 1147 | 1978 | 4210 | 4786 |
Weight Chart of BS 3059 Grade 360 Tubes
| Size (NPS) | O.D. (in) | Wall (in) | I.D. (in) | Weight (lb/ft) | Schedule / Class | Section Modulus | Gal / Linear Foot |
|---|---|---|---|---|---|---|---|
| 1/2 | 0.840 | 0.109 | 0.622 | 0.85 | STD / 40 | 0.0407 | 0.0158 |
| 1/2 | 0.840 | 0.147 | 0.546 | 1.09 | XHY / 80 | 0.0478 | 0.0122 |
| 1/2 | 0.840 | 0.188 | 0.464 | 1.31 | 160 | 0.0528 | 0.0088 |
| 1/2 | 0.840 | 0.294 | 0.252 | 1.72 | XXHY | 0.0577 | 0.0026 |
| 3/4 | 1.050 | 0.113 | 0.824 | 1.13 | STD / 40 | 0.0705 | 0.0277 |
| 3/4 | 1.050 | 0.154 | 0.742 | 1.48 | XHY / 80 | 0.0853 | 0.0225 |
| 3/4 | 1.050 | 0.219 | 0.612 | 1.95 | 160 | 0.1006 | 0.0153 |
| 3/4 | 1.050 | 0.308 | 0.434 | 2.44 | XXHY | 0.1103 | 0.0077 |
| 1 | 1.315 | 0.133 | 1.049 | 1.68 | STD / 40 | 0.1328 | 0.0449 |
| 1 | 1.315 | 0.179 | 0.957 | 2.17 | XHY / 80 | 0.1606 | 0.0374 |
| 1 | 1.315 | 0.250 | 0.815 | 2.85 | 160 | 0.1904 | 0.0271 |
| 1 | 1.315 | 0.358 | 0.599 | 3.66 | XXHY | 0.2136 | 0.0146 |
| 1 1/4 | 1.660 | 0.140 | 1.380 | 2.27 | STD / 40 | 0.2346 | 0.0777 |
| 1 1/4 | 1.660 | 0.191 | 1.278 | 3.00 | XHY / 80 | 0.2913 | 0.0666 |
| 1 1/4 | 1.660 | 0.250 | 1.160 | 3.77 | 160 | 0.3421 | 0.0549 |
| 1 1/4 | 1.660 | 0.382 | 0.896 | 5.22 | - | 0.4110 | 0.0328 |
| 1 1/2 | 1.900 | 0.145 | 1.610 | 2.72 | STD / 40 | 0.3262 | 0.1058 |
| 1 1/2 | 1.900 | 0.200 | 1.500 | 3.63 | XHY / 80 | 0.4118 | 0.0918 |
| 1 1/2 | 1.900 | 0.281 | 1.338 | 4.86 | 160 | 0.5079 | 0.0730 |
| 1 1/2 | 1.900 | 0.400 | 1.100 | 6.41 | - | 0.5977 | 0.0494 |
| 2 | 2.375 | 0.154 | 2.067 | 3.66 | STD / 40 | 0.5606 | 0.1743 |
| 2 | 2.375 | 0.218 | 1.939 | 5.03 | XHY / 80 | 0.7309 | 0.1534 |
| 2 | 2.375 | 0.344 | 1.687 | 7.47 | 160 | 0.9806 | 0.1161 |
| 2 | 2.375 | 0.436 | 1.503 | 9.04 | XXHY | 1.1043 | 0.0922 |
| 3 | 3.500 | 0.216 | 3.068 | 7.58 | STD / 40 | 1.7241 | 0.3840 |
| 3 | 3.500 | 0.300 | 2.900 | 10.26 | XHY / 80 | 2.2253 | 0.3431 |
| 3 | 3.500 | 0.438 | 2.624 | 14.34 | 160 | 2.8774 | 0.2811 |
| 3 | 3.500 | 0.600 | 2.300 | 18.60 | XXHY | 3.4243 | 0.2158 |
| 4 | 4.500 | 0.237 | 4.026 | 10.80 | STD / 40 | 3.2145 | 0.6613 |
| 4 | 4.500 | 0.337 | 3.826 | 15.00 | XHY / 80 | 4.2713 | 0.5972 |
| 4 | 4.500 | 0.531 | 3.438 | 22.53 | 120 | 5.1790 | 0.4822 |
| 4 | 4.500 | 0.674 | 3.152 | 27.57 | XXHY | 6.7927 | 0.4054 |
| 6 | 6.625 | 0.280 | 6.065 | 18.99 | STD / 40 | 8.4958 | 1.5008 |
| 6 | 6.625 | 0.432 | 5.761 | 28.60 | XHY / 80 | 12.2241 | 1.3541 |
| 6 | 6.625 | 0.719 | 5.187 | 45.39 | 120 | 17.8243 | 1.0977 |
| 6 | 6.625 | 0.864 | 4.897 | 53.21 | XXHY | 20.0250 | 0.9784 |
Application & Industrial Uses of BS 3059 Grade 360
- Petrochemical Industry
- Chemical Industry
- Oil and Gas Industry
- Pulp & Paper Industry
- Power Plant Industry
- Food Processing Industry
- Pharmaceuticals Industry
- Energy Industry
- Aerospace Industry
Quality Assurance and Testing of BS 3059 Grade 360 Tubes
All BS 3059 Grade 360 Tubes supplied by USA Piping Solution undergo strict quality inspection procedures including hydrostatic testing, flattening tests, eddy current testing, dimensional verification, and material identification checks to ensure compliance with BS 3059 Part 2 requirements.
Packaging and Export Supply of BS 3059 Grade 360 Tubes
The tubes are supplied with plastic end caps, bundled packaging, wooden export boxes, and moisture-resistant wrapping to prevent transit damage during domestic and international shipment.
Price List of BS 3059 Grade 360 Tubes
| Product Description | Specification / Grade | Estimated Price (USD) | Unit |
|---|---|---|---|
| Carbon Steel Boiler Tubes | BS 3059 Part 1 Gr. 320 | 750.00 | Ton |
| Seamless Steel Water Boiler Tube | BS 3059 CFS Grade 320 | 745.00 - 780.00 | Ton |
| Carbon Steel Boiler Tubes | BS 3059 Part 1 Gr. 320 | 700.00 - 1,000.00 | Ton |
| Seamless Carbon Steel Boiler Tube | BS 3059 CEW 360 | 800.00 - 1,000.00 | Ton |
| Carbon Steel Boiler Tubes | BS 3059 Part 1 Gr. 320 | 1.00 - 1,000.00* | Ton |
| Carbon Steel Heat Exchanger Tubes | BS 3059 Grade 360 | 1,200.00 | Metric Ton |
| Steel Boiler & Superheater Tubes | BS 3059 (General) | 500.00 - 1,100.00 | Ton |
| Seamless Stainless Steel U-Tube | S32205 (Duplex) | 6.79 - 6.87 | Meter |
Frequently Asked Questions
What is BS 3059 PT 1 GR. 320?
BS 3059 PT 1 GR. 320 is a carbon steel tube specification used for pressure purposes, heat exchangers, boilers, and other industrial applications requiring strength and durability.
What is the chemical composition of BS 3059 Grade 360?
BS 3059 Grade 360 mainly contains carbon, manganese, silicon, sulfur, and phosphorus, which provide good strength, weldability, and formability.
What are the mechanical properties of BS 3059-1 Grade 360?
BS 3059-1 Grade 320 offers good tensile strength, yield strength, and elongation, making it suitable for medium-pressure and temperature applications.
What is the difference between BS 3059 Grade 320 and Grade 360?
Grade 360 has higher tensile and yield strength compared to Grade 320, making it more suitable for high-pressure and high-temperature applications.
What are the applications/uses of BS 3059 Grade 360 tubes?
These tubes are commonly used in boilers, heat exchangers, condensers, power plants, refineries, and general engineering industries.
