The Incoloy 800HT (UNS N08811) Pipes and tubes are the most commonly used material to make different components to work in high-temperature and corrosive environments. It's made up of different elements such as nickel, iron, chromium, and other elements that provide exceptional strength and resistance. Incoloy 800HT UNS N08811 is made according to international quality standards, which is such as ASTM B407 and ASME SB514. It also performs well in the temperature range between 650 °C and 870 °C. They have higher creep strength and rupture strength than regular Incoloy 800 series due to the addition of controlled carbon, aluminum and titanium. They can be seamless or welded and are applied in many applications such as power generation, chemical processing equipment, heat treatment furnaces, and petrochemical plants. USA Piping Solution is a manufacturer and supplier of high quality Incoloy 800HT (UNS N08811) Pipes & Tubes that are manufactured through precision manufacturing, strict quality inspection and reliable worldwide delivery.
Specifications of Incoloy 800HT UNS N08811 pipes & tubes
| Parameter | Specification Details |
|---|---|
| Material Grade | Incoloy 800HT / UNS N08811 / NCF 800HT |
| ASTM / ASME Specifications | • Seamless: ASTM B407 / ASME SB 407, ASTM B163 / ASME SB 163, ASTM B829 / ASME SB 829 • Welded: ASTM B514 / ASME SB 514, ASTM B515 / ASME SB 515, ASTM B751 / ASME SB 751, ASTM B775 / ASME SB 775 |
| International Standards | ASTM, ASME, EN, DIN, JIS, GB |
| Application Scope | Seamless & Welded Superheater, Condenser, Hydraulic, Boiler, and Heat-Exchanger Tubes |
| Manufacturing Types | Seamless, ERW, Welded, Fabricated, CDW (Cold Drawn Welded), CDS (Cold Drawn Seamless), DOM, CEW, 100% X-Ray Welded |
| Forming Techniques | Cold Drawn, Cold Rolled, Hot Rolled, Extrusion |
| Available Forms | Round, straight length, U-bend, coiled, pancake coil |
| Sizing & Wall Thickness | Pipe: SCH 5S to SCH 160 and XXS per ASME B36.19M / B36.10M Tube: Ordered by Outer Diameter (OD) and Wall Thickness (WT) |
| Gauge Range (SWG / BWG) | 10 SWG, 12 SWG, 14 SWG, 16 SWG, 18 SWG, 20 SWG |
| Delivery Conditions & Finishes | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, Mill Finish (MF) |
| End Connections | Plain End, Beveled End, Threaded |
| Value-Added & Processing Services | Bending, Welding, Decoiling, Punching, Cutting, Beveling, Threading, Moulding, Draw & Expansion (custom size/length), Ultrasonic Testing, Annealed & Pickled Bending, Destructive & Non-Destructive Testing |
| Standard Pipe Marking | Specification, Material Grade, Nominal Size, Schedule / Wall Thickness, Manufacturing Method (Seamless/Welded), Heat Number, Manufacturer Name / Custom Logo Sample Marking: ASTM B407 UNS N08811 SEAMLESS 113.60 MM OD X 6 MM W.T. HEAT NO. XXXXXX |
| Testing & Quality Certificates | • Manufacturer Test Certificate • EN 10204 3.1 / 3.2 / 3.1B Material Test Certificates (MTC) • 100% Radiography / X-Ray Test Report • Govt. Approved Lab Test Certificate & Third-Party Inspection Reports • Heat Treatment Charts • Raw Material Certificates • HS Code Commercial Invoice, Form A (GSP) |
| Packaging Details | PE Fabric Bundles, Ply Wooden Boxes wrapped in plastic, Standard Seaworthy Export Packing, or customized as per client requirements |
Types of Incoloy 800HT (UNS N08811) Pipes & Tubes
Incoloy UNS N08810_UNS N08811 Welded Pipe

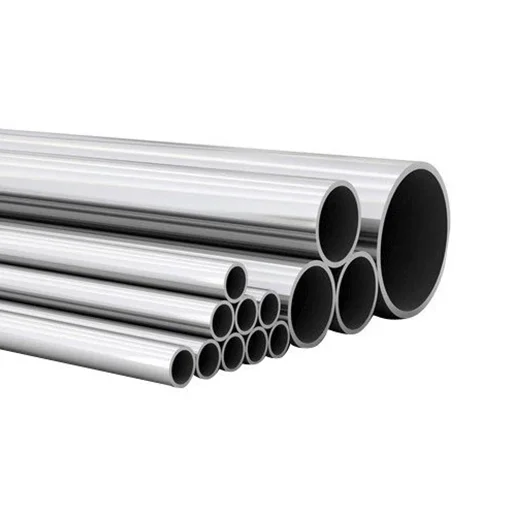

Incoloy UNS N08810_UNS N08811 Seamless Pipe
Incoloy UNS N08810_UNS N08811 Round Pipe
Applications Uses of Incoloy 800HT UNS N08811 Pipes & Tubes
- Heat Treatment Furnaces
- Steam Methane Reformers (SMR)
- Ethylene Cracking Furnaces
- Petrochemical Process Heaters
- Power Generation Plants
- Waste Heat Recovery Boilers
- Chemical Processing Plants
- Nuclear Power Plants
Frequently Asked Questions
1. What are Incoloy 800HT UNS N08811 Pipes & Tubes?
Incoloy 800HT UNS N08811 Pipes & Tubes are nickel-iron-chromium alloy products designed for high-temperature applications requiring excellent creep strength, oxidation resistance, and long-term thermal stability.
2. What is the difference between Incoloy 800H and Incoloy 800HT?
Incoloy 800HT has tighter control of carbon, aluminum, and titanium content than Incoloy 800H, providing improved creep strength and better performance during prolonged high-temperature service.
3. Why is Incoloy 800HT preferred for high-temperature applications?
Incoloy 800HT is preferred because it maintains excellent mechanical strength, creep resistance, and structural stability during continuous exposure to elevated temperatures.
4. Is Incoloy 800HT resistant to oxidation and carburization?
Yes. Incoloy 800HT offers excellent resistance to oxidation, carburization, and nitriding, making it suitable for high-temperature industrial environments.
5. Can Incoloy 800HT Pipes & Tubes be welded?
Yes. Incoloy 800HT Pipes & Tubes have good weldability and can be welded using standard welding methods with appropriate filler metals and procedures.
