Round Bars of Inconel 600 (UNS N06600): These are pure bars made from nickel-chromium alloys and are specifically used in highly corrosive reducing conditions; these bars have great anti-oxidation and anti-carburization properties when used in high-temperature conditions. Around 72% nickel is the composition of these alloys that resist chloride stress corrosion cracking and are strong mechanically up to 1093°C (2000°F). Inconel 600 Round Bars are available in various shapes such as round, hex, square, flat, bright and forged, and are widely used in furnace equipment, chemical processing, aerospace and heat treatment Industries. USA Piping Solution is a reliable Inconel 600 (UNS N06600) Round Bar Manufacturer and Supplier, providing high quality products at competitive prices and shipping worldwide.
Specifications of Inconel 600 (UNS N06600) Round Bar
| Product Form | Size / Dimensions |
|---|---|
| Round Bar | Diameter: 3 mm to ~800 mm |
| Hex Bar | 2 mm to 100 mm A/F |
| Flat Bar | Thickness: 2 mm to 100 mm Width: 10 mm to 500 mm |
| Square Bar | 4 mm to 100 mm |
| Angle Bar | 3 × 20 × 20 mm to 12 × 100 × 100 mm |
| Section Bar | 3.0 mm to 12.0 mm thickness |
| Channel Bar | 80 × 40 mm to 150 × 75 mm section (5.0 mm to 6.0 mm thickness) |
| Hollow Bar | 32 mm OD × 16 mm ID to 250 mm OD × 200 mm ID |
| Billet | 1/2" (12.7 mm) to 495 mm Diameter |
| Rectangles | 33 × 30 mm to 295 × 1066 mm |
Different Types of Inconel 600 (UNS N06600) Round Bar

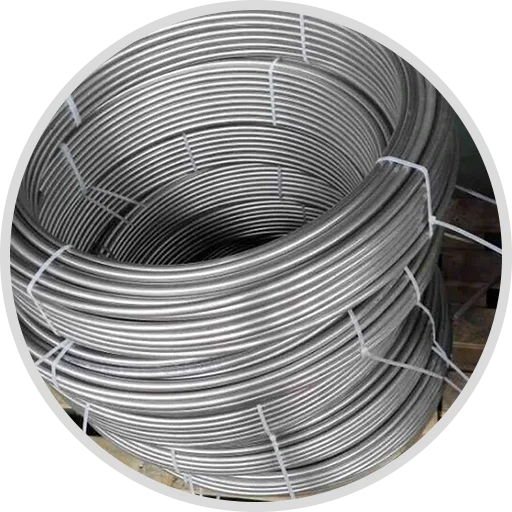

ASME SB166 N06600 Cold-Worked Wire

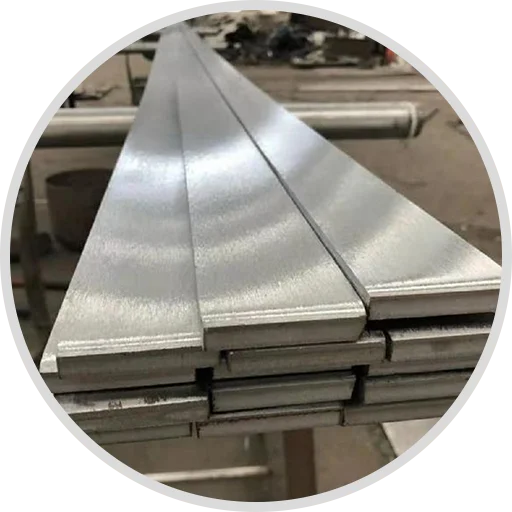

ASME SB166 UNS N06600 Rectangular Bar

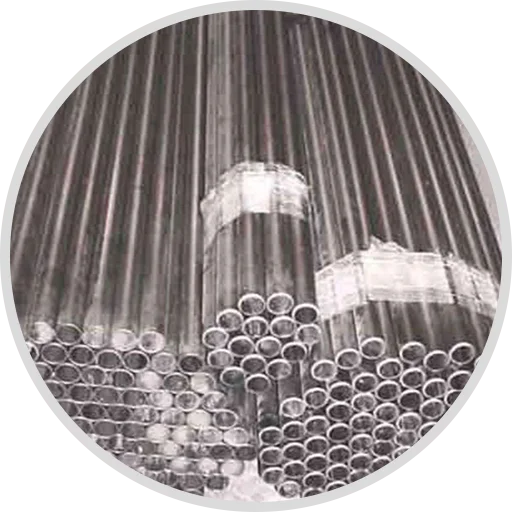

B166 N06600 Rod

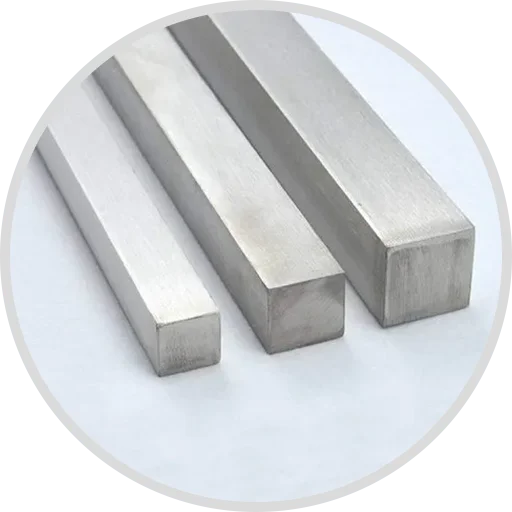

B166 UNS N06600 Square Bar

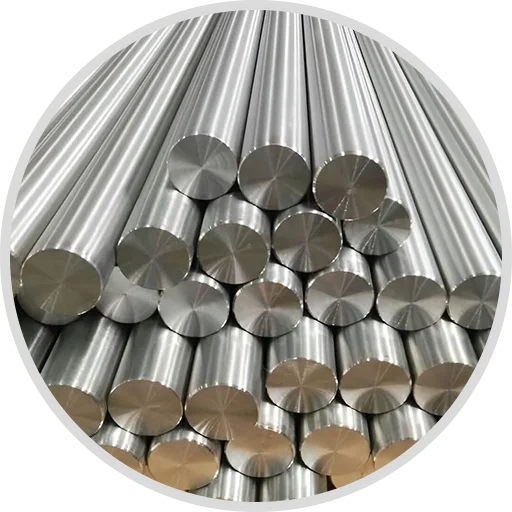

SB 166 N06600 Rounds

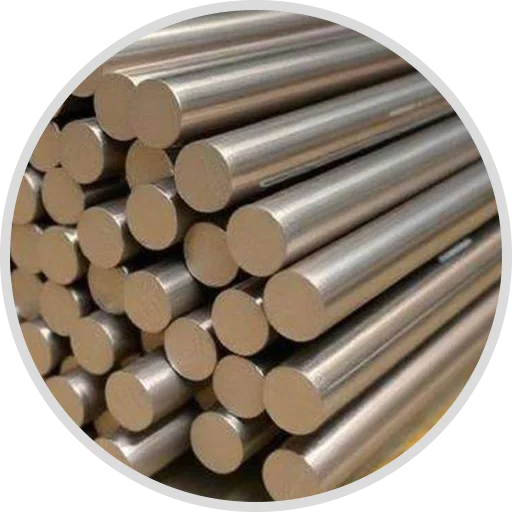

SB 166 UNS N06600 Bright Bar
Applicational Uses of Inconel 600 (UNS N06600) Round Bar
- Industrial Heat Treatment Furnace Components
- Chemical Processing Plant Equipment
- Nuclear Reactor & Steam Generator Components
- Aerospace Engine & Exhaust System Components
- Petrochemical Processing & Reformer Furnaces
- Heat Exchangers, Condensers & Thermowells
- Caustic Soda (Chlor-Alkali) Processing Plants
- Radiant Tubes, Furnace Fixtures & Retorts
Frequently Asked Questions
1. What is Inconel 600 (UNS N06600) Round Bar used for?
Inconel 600 Round Bar is used to manufacture furnace components, heat exchangers, chemical processing equipment, nuclear reactor parts, and aerospace components.
2. What is the difference between Inconel 600 and Inconel 625?
Inconel 625 contains molybdenum and niobium, giving it higher strength and better corrosion resistance than Inconel 600. Inconel 600 is mainly preferred for high-temperature oxidation and carburization resistance.
3. What is the maximum operating temperature of Inconel 600 Round Bar?
Inconel 600 can withstand continuous service temperatures up to approximately 1093°C (2000°F) while maintaining excellent mechanical properties.
4. Is Inconel 600 resistant to chloride stress corrosion cracking?
Yes. Due to its high nickel content, Inconel 600 offers excellent resistance to chloride stress corrosion cracking in many industrial environments.
5. What is the UNS number for Inconel 600?
The UNS designation for Inconel 600 is UNS N06600.
6. Can Inconel 600 Round Bars be welded?
Yes. Inconel 600 Round Bars have excellent weldability and can be welded using standard nickel alloy welding processes without requiring special heat treatment.
