USA Piping Solutions is one of the top stainless steel 317 tubes suppliers and exporters in USA. We stock a full line of seamless and welded SS 317L tubes, including ASTM A312 TP317 tubes, ASTM A213 TP317 and ASTM A249 TP317L. We have a wide range of UNS S31700 tubes and UNS S31703 tubes in stock for ready availability to chemical plants, FGD systems, pulp and paper mills and power generation systems all over the world. We are a trusted 317L stainless tube supplier and can assure you that each shipment is certified to full mill test, solution annealed condition and meet ASTM and ASME requirements.
SS 317 and 317L Specifications
The table below outlines the key specifications for our stainless steel 317 tubes programme. All products carry both ASTM and ASME equivalent designations (ASME SA312 TP317 and SA213 TP317) for use in coded construction. For our full range of stainless products, browse the Stainless Steel Pipes and Tubes master category.
| Specification | Details |
| Grade | SS 317 and SS 317L |
| UNS Number | UNS S31700 317 and UNS S31703 317L |
| DIN EN | 1.4449 317 and 1.4438 317L |
| ASTM Standards | A312, A213, A249, A269 |
| ASME Equivalent | SA312 TP317 and SA213 TP317 |
| Seamless OD Range | 0.5 inch to 8 inch NB |
| Welded OD Range ERW | 0.5 inch to 24 inch NB |
| Welded OD Range EFW | 6 inch to 100 inch NB |
| Tube OD | 6 mm to 100 mm |
| Wall Thickness | Sch 5S through XXS |
| Form | Seamless and Welded ERW and EFW |
Supply Forms of SS 317 and 317L Tubes

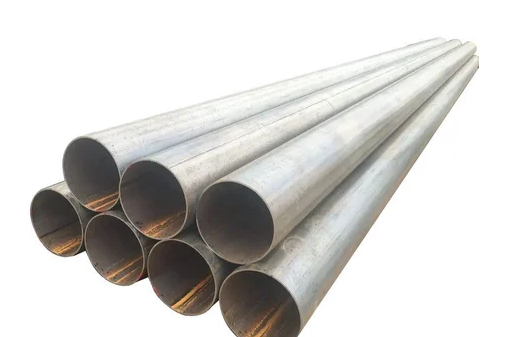

Seamless ASTM A213 and A312 Available in OD 0.5 inch to 8 inch NB and tube OD 6 to 76 mm. ASTM A213 is mandatory for boiler and superheater service under ASME Section I. For full details, visit Stainless Steel 317 Seamless Tubes.

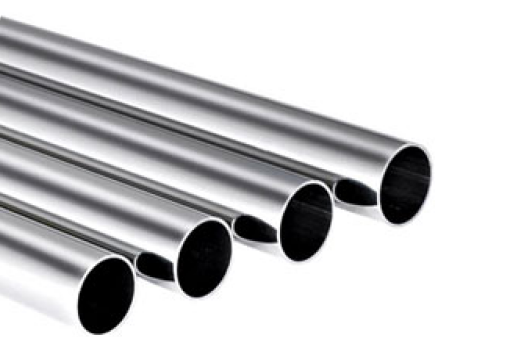

Welded ASTM A249 and A312 Available in ERW form up to 24 inch NB and EFW form up to 100 inch NB. ASTM A249 is the standard specification for welded heat exchanger and condenser tubes. See Stainless Steel 317 Welded Tubes for the complete welded programme
Need SS 317 and 317L Tubes at factory direct pricing
Contact USA Piping Solutions with your grade, size, and quantity requirements. We will provide stock availability, competitive pricing, and a delivery schedule within 24 hours.
Stainless Steel 317 and 317L Tubes Size and Weight Chart
| OD in mm | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.6 | 2 | 2.6 | 3 | 3.2 | 3.6 |
| Wall Thickness in mm to Weight in kg per m | ||||||||||||
| 6 | 0.069 | 0.081 | 0.093 | 0.104 | 0.125 | 0.144 | 0.176 | NA | NA | NA | NA | NA |
| 10 | 0.119 | 0.141 | 0.163 | 0.184 | 0.225 | 0.264 | 0.336 | NA | NA | NA | NA | NA |
| 12.7 | 0.153 | 0.182 | 0.21 | 0.238 | 0.293 | 0.345 | 0.444 | NA | NA | NA | NA | NA |
| 14 | 0.169 | 0.201 | 0.233 | 0.264 | 0.325 | 0.384 | 0.496 | NA | NA | NA | NA | NA |
| 15.87 | 0.192 | 0.229 | 0.266 | 0.301 | 0.372 | 0.44 | 0.571 | 0.694 | NA | NA | NA | NA |
| 19 | 0.231 | 0.276 | 0.32 | 0.364 | 0.45 | 0.534 | 0.696 | 0.85 | 1.066 | 1.2 | 1.264 | NA |
| 25 | 0.306 | 0.366 | 0.425 | 0.484 | 0.6 | 0.714 | 0.936 | 1.15 | 1.456 | 1.65 | 1.744 | 1.926 |
| 25.4 | 0.311 | 0.372 | 0.432 | 0.492 | 0.61 | 0.726 | 0.952 | 1.17 | 1.482 | 1.68 | 1.776 | 1.962 |
| 31.8 | NA | NA | NA | NA | NA | 0.918 | 1.208 | 1.49 | 1.898 | 2.16 | 2.288 | 2.538 |
| 38 | NA | NA | NA | NA | NA | 1.104 | 1.456 | 1.8 | 2.301 | 2.625 | 2.784 | 3.096 |
| 44.5 | NA | NA | NA | NA | NA | 1.299 | 1.716 | 2.125 | 2.724 | 3.113 | 3.304 | 3.681 |
| 50.8 | NA | NA | NA | NA | NA | NA | 1.968 | 2.44 | 3.133 | 3.585 | 3.808 | 4.248 |
| 63.5 | NA | NA | NA | NA | NA | NA | 2.476 | 3.075 | 3.959 | 4.538 | 4.824 | 5.391 |
| 76.1 | NA | NA | NA | NA | NA | NA | 2.98 | 3.705 | 4.778 | 5.483 | 5.832 | 6.525 |
| 101.6 | NA | NA | NA | NA | NA | NA | 4 | 4.98 | 6.435 | 7.395 | 7.872 | 8.82 |
| 114.3 | NA | NA | NA | NA | NA | NA | 4.453 | 5.547 | 7.173 | 8.247 | 8.78 | 9.84 |
| 127 | NA | NA | NA | NA | NA | NA | 4.955 | 6.175 | 7.989 | 9.188 | 9.785 | 10.98 |
| 152.4 | NA | NA | NA | NA | NA | NA | 5.96 | 7.429 | 9.62 | 11.07 | 11.792 | 13.231 |
Applications of Stainless Steel 317 and 317L Tubes
The superior pitting resistance and acid handling capability of SS 317L tube make it the preferred material for
- FGD flue gas desulphurisation scrubbing systems and absorber outlet ducts.
- Pulp and paper bleach plant heat exchangers and process tubing.
- Phosphoric acid production plant heat exchangers and reactors.
- Chemical process service handling acetic, formic, tartaric, and citric acids.
- Food and beverage processing equipment requiring corrosion resistance.
- Power plant condensers operating in aggressive cooling water environments.
For environments that exceed even 317L capability, consider upgrading to Stainless Steel 904L Pipes and Tubes. For related austenitic grades, see Stainless Steel 321 Pipes and Tubes. Also visit our Blog Stainless Steel Properties Grades for a detailed guide to grade selection.
Related Products
- Stainless Steel 317 Seamless Tubes
- Stainless Steel 317 Welded Tubes
- Stainless Steel 316 Seamless Pipe and Tube
- Stainless Steel Seamless Pipes and Tubes
- Stainless Steel 904L Pipes and Tubes
- Stainless Steel 321 Pipes and Tubes
- Blog Stainless Steel Properties Grades
Ready to Order SS 317 and 317L Tubes
Email your complete requirement with grade, size, schedule, quantity, and delivery location. Our team will provide the best pricing and delivery timeline within 24 hours.
Frequently Asked Questions
Q1 SS 317L vs 316L which for chloride environments
317L with 3.0 to 4.0 percent Mo delivers a PREN of approximately 30 versus approximately 26 for 316L. In chloride bearing environments where 316L pits, 317L provides measurable safety margin. Upgrade to 317L when 316L operates at its corrosion limit.
Q2 ASTM A312 TP317 vs TP317L what is the difference
The difference is carbon content. TP317 allows 0.08 percent C max and TP317L is restricted to 0.035 percent C max. 317L prevents sensitization during welding and is the standard choice for all welded construction and assemblies.
Q3 Is SS 317L tube available with NACE MR0175 compliance
Yes. SS 317L in the solution annealed condition meets NACE MR0175 and ISO 15156 requirements for sour service. We can supply with NACE compliance certification on request.
