Stainless Steel 304 Seamless Capillary Tubes are very precise tubes fabricated from austenitic stainless steel containing about 18% chromium and 8% nickel, having great formability and high tensile strength along with great corrosion resistance. They are formed without any joints to provide uniform wall thickness as well as a flawless seal, with inner surfaces that are perfect for instrumentation, medical, and hydraulic applications. The tubes have been manufactured to meet ASTM and ASME standards and have very close tolerances, which will assure performance in challenging environments. They are widely used with Stainless Steel Seamless Pipes & Tubes, Stainless Steel Instrumentation Tubes and Stainless Steel 316 Capillary Tubes in total piping applications. USA Piping Solution offers high-quality SS 304 Seamless Capillary Tubes stocked in various sizes, delivered anywhere in the world and competitively priced.
Specifications of Stainless Steel 304 Seamless Capillary Tubes
| Specification Parameter | Details |
|---|---|
| Material Grade | Stainless Steel 304 |
| Specifications | ASTM A213 / ASME SA213, ASTM A249 / ASME SA249, ASTM A269, ASTM A312, ASTM A268, ASTM A270, ASTM A554, ASTM A632, ASTM A688, etc. |
| Standards | ASTM, ASME, BS, JIS, DIN, GB, AISI, ISO, and other International Standards |
| Type | Seamless / ERW / Welded / Semi-Seamless / Fabricated |
| Form | Round, Straight, Hydraulic, etc. |
| Outer Diameter (OD) | 0.3 mm - 12.0 mm |
| Wall Thickness | 0.08 mm - 0.2 mm |
| Surface Finish | Polished, Colored |
| End Finish | Plain End, Beveled End |
| Length | As per Customer Requirement |
Different Types of Stainless Steel 304 Seamless Capillary Tubes

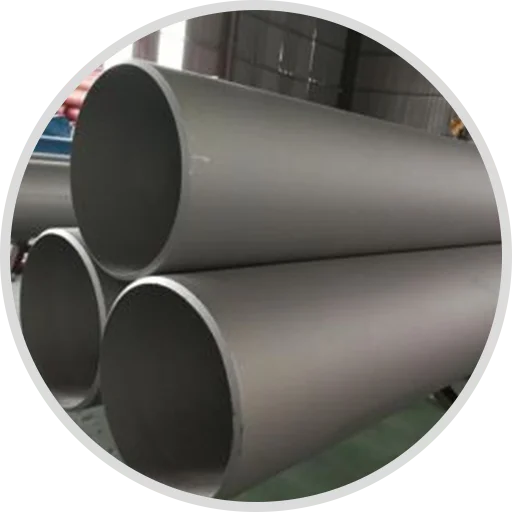

Seamless SS 304 Capillary Tubes.png

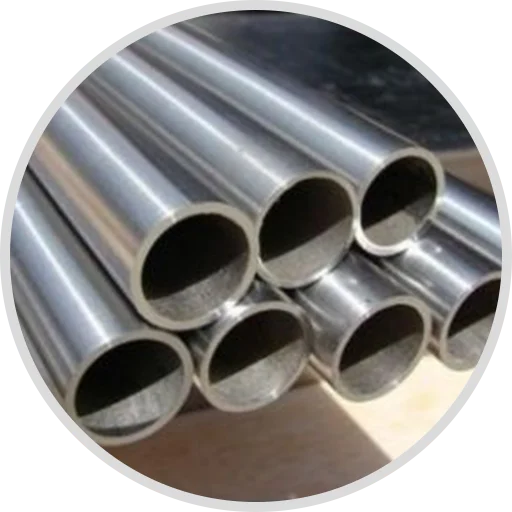

Welded SS 304 Capillary Tubes.png
Applications of Stainless Steel 304 Seamless Capillary Tubes
- Medical Devices & Healthcare Industry
- Chromatography & Analytical Laboratories
- High-Pressure Hydraulic Systems
- Chemical & Petrochemical Processing
- Instrumentation & Process Control
- Aerospace & Aviation Industry
- Heat Exchanger Manufacturing
Related Products
- Stainless Steel 304 Seamless Pipe & Tube,
- Stainless Steel 304 Micro Tubes,
- Stainless Steel 304 Welded Pipe & Tube,
- Stainless Steel Seamless Pipes & Tubes.
Frequently Asked Questions
What are Stainless Steel 304 Seamless Capillary Tubes?
Stainless Steel 304 Seamless Capillary Tubes are precision tubes manufactured without welded joints from SS 304 stainless steel. They provide excellent strength, corrosion resistance, and dimensional accuracy.
What are SS 304 Seamless Capillary Tubes used for?
SS 304 Seamless Capillary Tubes are used in instrumentation, medical equipment, chromatography, hydraulic systems, food processing, and laboratory applications requiring precise fluid or gas flow.
What are the advantages of SS 304 Seamless Capillary Tubes?
SS 304 Seamless Capillary Tubes offer excellent corrosion resistance, high strength, leak-free performance, smooth internal surfaces, and precise dimensional tolerances.
What is the difference between SS 304 seamless and welded capillary tubes?
SS 304 seamless capillary tubes are manufactured without a weld seam, providing higher strength and pressure resistance, while welded capillary tubes are made by welding stainless steel strips and are generally more economical.
Are SS 304 Seamless Capillary Tubes corrosion resistant?
Yes. SS 304 Seamless Capillary Tubes offer excellent resistance to corrosion, oxidation, and many chemicals, making them suitable for a wide range of industrial applications.
